CHAPTER 2 DEVICES FOR GAS

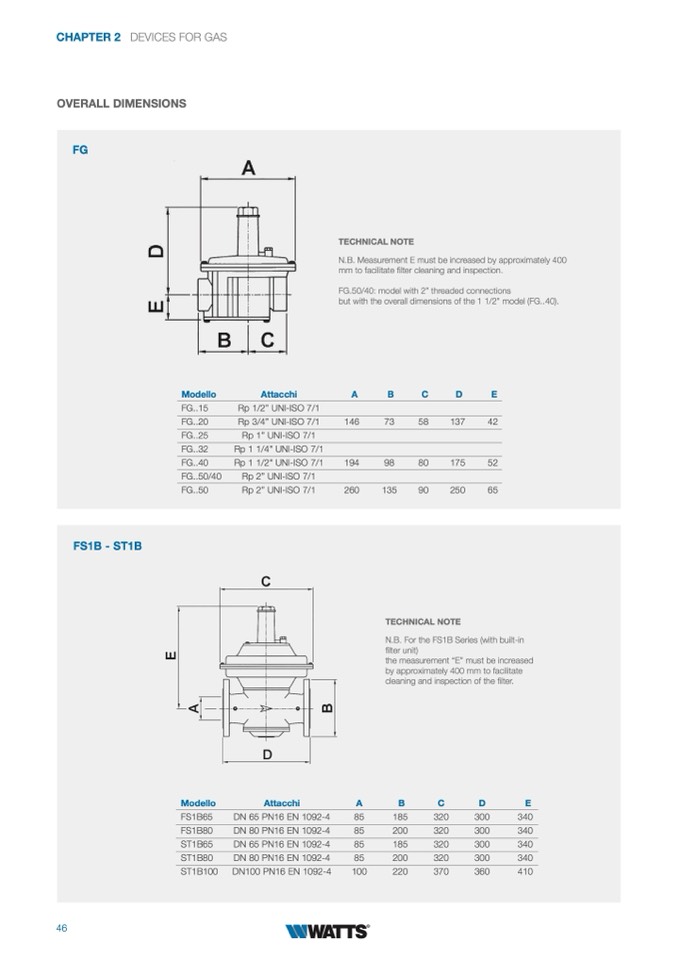

OVERALL DIMENSIONS

FG

Modello

FG..15

FG..20

FG..25

FG..32

FG..40

FG..50/40

FG..50

Attacchi

Rp 1/2” UNI-ISO 7/1

Rp 3/4” UNI-ISO 7/1

Rp 1” UNI-ISO 7/1

Rp 1 1/4" UNI-ISO 7/1

Rp 1 1/2" UNI-ISO 7/1

Rp 2” UNI-ISO 7/1

Rp 2” UNI-ISO 7/1

A

B

146

73

194

98

260

135

C

D

E

58

137

42

80

175

52

90

250

65

TECHNICAL NOTE

N.B. Measurement E must be increased by approximately 400

mm to facilitate filter cleaning and inspection.

FG.50/40: model with 2” threaded connections

but with the overall dimensions of the 1 1/2" model (FG..40).

FS1B - ST1B

TECHNICAL NOTE

N.B. For the FS1B Series (with built-in

filter unit)

the measurement “E” must be increased

by approximately 400 mm to facilitate

cleaning and inspection of the filter.

Modello

Attacchi

A

B

C

D

E

FS1B65

FS1B80

ST1B65

ST1B80

ST1B100

DN 65 PN16 EN 1092-4

DN 80 PN16 EN 1092-4

DN 65 PN16 EN 1092-4

DN 80 PN16 EN 1092-4

DN100 PN16 EN 1092-4

85

185

85

200

85

185

85

200

100

220

320

300

340

320

300

340

320

300

340

320

300

340

370

360

410

46
