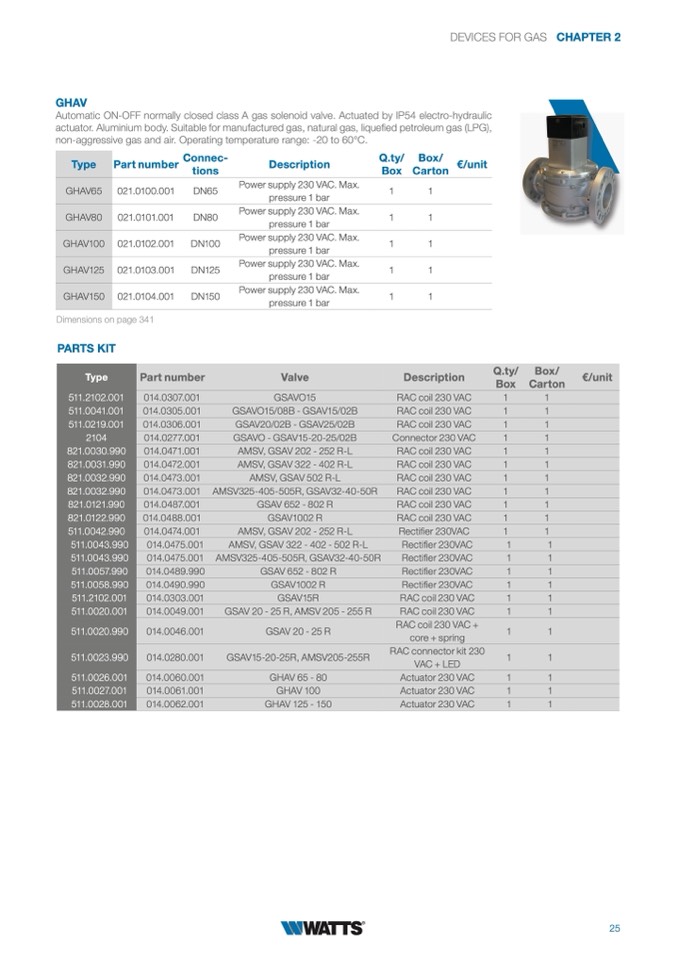

GHAV

Automatic ON-OFF normally closed class A gas solenoid valve. Actuated by IP54 electro-hydraulic

actuator. Aluminium body. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG),

non-aggressive gas and air. Operating temperature range: -20 to 60°C.

DEVICES FOR GAS

CHAPTER 2

Type

GHAV65

GHAV80

GHAV100

GHAV125

GHAV150

Part number

Connec-

tions

Description

Power supply 230 VAC. Max.

pressure 1 bar

Power supply 230 VAC. Max.

pressure 1 bar

Power supply 230 VAC. Max.

pressure 1 bar

Power supply 230 VAC. Max.

pressure 1 bar

Power supply 230 VAC. Max.

pressure 1 bar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

1

1

€/unit

021.0100.001

021.0101.001

021.0102.001

021.0103.001

021.0104.001

Dimensions on page 341

PARTS KIT

DN65

DN80

DN100

DN125

DN150

Type

Part number

Valve

Description

Q.ty/

Box

Box/

Carton

€/unit

511.2102.001

014.0307.001

GSAVO15

RAC coil 230 VAC

1

1

511.0041.001

014.0305.001

GSAVO15/08B - GSAV15/02B

RAC coil 230 VAC

1

1

511.0219.001

014.0306.001

GSAV20/02B - GSAV25/02B

RAC coil 230 VAC

1

1

2104

014.0277.001

GSAVO - GSAV15-20-25/02B

Connector 230 VAC

1

1

821.0030.990

014.0471.001

AMSV, GSAV 202 - 252 R-L

RAC coil 230 VAC

1

1

821.0031.990

014.0472.001

AMSV, GSAV 322 - 402 R-L

RAC coil 230 VAC

1

1

821.0032.990

014.0473.001

AMSV, GSAV 502 R-L

RAC coil 230 VAC

1

1

821.0032.990

014.0473.001

AMSV325-405-505R, GSAV32-40-50R

RAC coil 230 VAC

1

1

821.0121.990

014.0487.001

GSAV 652 - 802 R

RAC coil 230 VAC

1

1

821.0122.990

014.0488.001

GSAV1002 R

RAC coil 230 VAC

1

1

511.0042.990

014.0474.001

AMSV, GSAV 202 - 252 R-L

Rectifier 230VAC

1

1

511.0043.990

014.0475.001

AMSV, GSAV 322 - 402 - 502 R-L

Rectifier 230VAC

1

1

511.0043.990

014.0475.001

AMSV325-405-505R, GSAV32-40-50R

Rectifier 230VAC

1

1

511.0057.990

014.0489.990

GSAV 652 - 802 R

Rectifier 230VAC

1

1

511.0058.990

014.0490.990

GSAV1002 R

Rectifier 230VAC

1

1

511.2102.001

014.0303.001

GSAV15R

RAC coil 230 VAC

1

1

511.0020.001

014.0049.001

GSAV 20 - 25 R, AMSV 205 - 255 R

RAC coil 230 VAC

1

1

511.0020.990

014.0046.001

GSAV 20 - 25 R

RAC coil 230 VAC +

core + spring

1

1

511.0023.990

014.0280.001

GSAV15-20-25R, AMSV205-255R

RAC connector kit 230

VAC + LED

1

1

511.0026.001

014.0060.001

GHAV 65 - 80

Actuator 230 VAC

1

1

511.0027.001

014.0061.001

GHAV 100

Actuator 230 VAC

1

1

511.0028.001

014.0062.001

GHAV 125 - 150

Actuator 230 VAC

1

1

25
