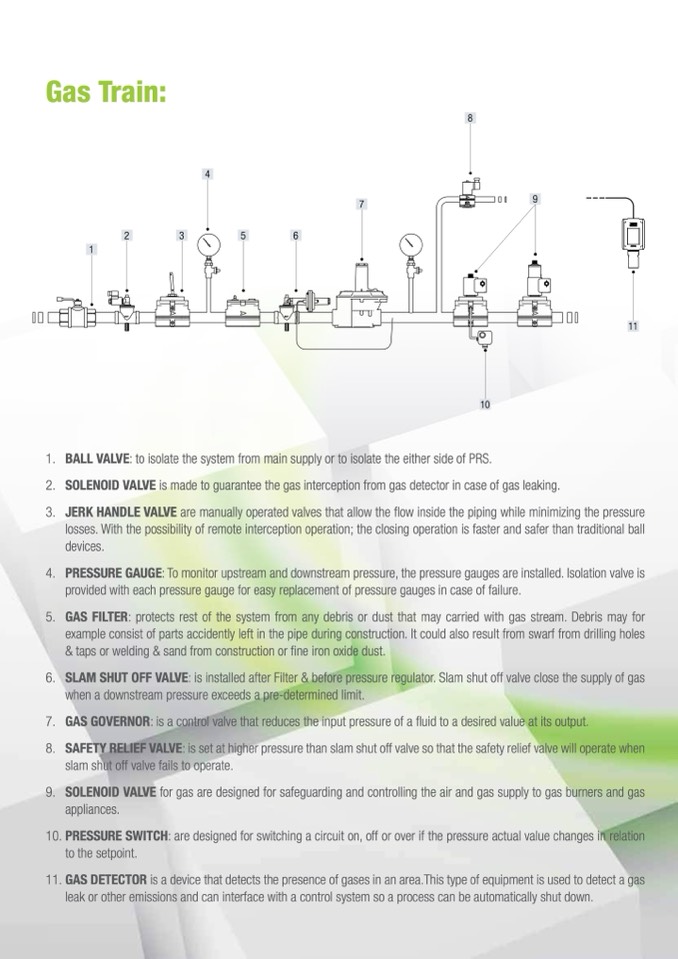

Gas Train:

2

3

5

6

1

8

4

1. ball ValVE: to isolate the system from main supply or to isolate the either side of PRS.

2. solEnoID ValVE is made to guarantee the gas interception from gas detector in case of gas leaking.

3. JErk HanDlE ValVE are manually operated valves that allow the flow inside the piping while minimizing the pressure

losses. With the possibility of remote interception operation; the closing operation is faster and safer than traditional ball

devices.

4. prEssurE GauGE: To monitor upstream and downstream pressure, the pressure gauges are installed. Isolation valve is

provided with each pressure gauge for easy replacement of pressure gauges in case of failure.

5. Gas fIlTEr: protects rest of the system from any debris or dust that may carried with gas stream. Debris may for

example consist of parts accidently left in the pipe during construction. It could also result from swarf from drilling holes

& taps or welding & sand from construction or fine iron oxide dust.

6. slam sHuT off ValVE: is installed after Filter & before pressure regulator. Slam shut off valve close the supply of gas

when a downstream pressure exceeds a pre-determined limit.

7. Gas GoVErnor: is a control valve that reduces the input pressure of a fluid to a desired value at its output.

8. safETy rElIEf ValVE: is set at higher pressure than slam shut off valve so that the safety relief valve will operate when

slam shut off valve fails to operate.

9. solEnoID ValVE for gas are designed for safeguarding and controlling the air and gas supply to gas burners and gas

appliances.

10. prEssurE swITcH: are designed for switching a circuit on, off or over if the pressure actual value changes in relation

to the setpoint.

11. Gas DETEcTor is a device that detects the presence of gases in an area.This type of equipment is used to detect a gas

leak or other emissions and can interface with a control system so a process can be automatically shut down.
