Gas soLenoID vaLves

code

Description

Dimension Type

pmax

36861293

36871294

36881295

36891773

36891775

36861301

36871302

36881303

36891768

TEcHnIcal fEaTurEs

body

closing time

protection level

Aluminium EN AC 43100

< 1 sec

IP65

36891769

approval

PED / EAC

EN161

Atex-II3GExnAIICT4Gc

236

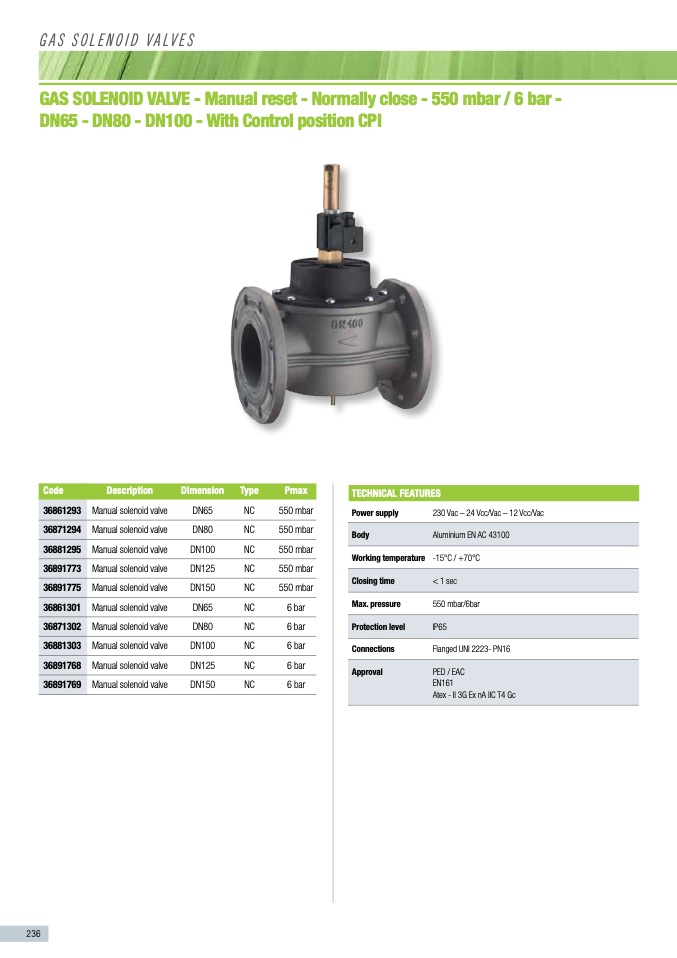

GAS SOlENOID VAlVE - manual reset - Normally close - 550 mbar / 6 bar -

DN65 - DN80 - DN100 - with Control position CPI

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

Manual solenoid valve

DN65

NC

DN80

NC

DN100

NC

DN125

NC

DN150

NC

DN65

NC

DN80

NC

DN100

NC

DN125

NC

DN150

NC

550 mbar

550 mbar

550 mbar

550 mbar

550 mbar

6 bar

6 bar

6 bar

6 bar

6 bar

power supply

working temperature

max. pressure

connections

230 Vac – 24 Vcc/Vac – 12 Vcc/Vac

-15°C / +70°C

550 mbar/6bar

Flanged UNI 2223- PN16
