code

Description

Dimension pmax

rG032

TEcHnIcal fEaTurEs

workingTemperature -20°C–+60°C

approval

UNI EN 88-1:2011 / PED / EAC

Diaphragms

NBR 60Sh – DvGW EN 549

rG040

rGD32

rGD40

setting outlet

5 – 300 mbar – Standard spring supplied 10 – 27 mbar –

Other spring on request – Range as per below table

Inlet - outlet

Thread gas 1 1⁄4” 11⁄2” - ISO 228

connection

DN32 - DN40 - Sliding Aluminium flange PN10

rG032-fT

rG040-fT

rGD32-fT

rGD40-fT

rG032-TpIo

rG040-TpIo

rGD32-TpIo

rGD40-TpIo

rG032-fT-TpIo

rG040-fT-TpIo

rGD32-fT-TpIo

rGD40-fT-TpIo

spw2-5

White

spy2-5

Yellow

spn2-5

Neutral

spr2-5

Red

spbk2-5

Black

spb2-5

Blue

5 - 14 mbar

6 - 22 mbar

10 - 27 mbar

28 - 70 mbar

60 - 130 mbar

120 - 300 mbar

20

Gas Governors

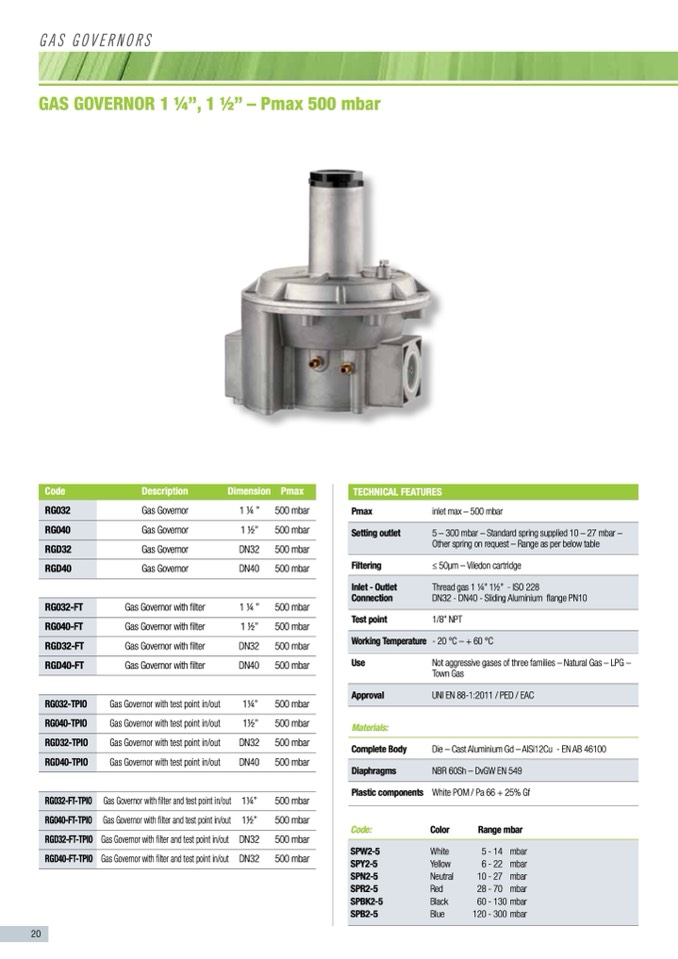

GAS GOVERNOR 1 1⁄4”, 1 1⁄2” – Pmax 500 mbar

Gas Governor

Gas Governor

Gas Governor

Gas Governor

Gas Governor with

Gas Governor with

Gas Governor with

Gas Governor with

filter

filter

filter

filter

11⁄4”

500 mbar

11⁄2”

500 mbar

DN32

500 mbar

DN40

500 mbar

11⁄4”

500 mbar

11⁄2”

500 mbar

DN32

500 mbar

DN40

500 mbar

11⁄4”

500 mbar

11⁄2”

500 mbar

DN32

500 mbar

DN40

500 mbar

11⁄4”

500 mbar

11⁄2”

500 mbar

DN32

500 mbar

DN32

500 mbar

pmax

filtering

Test point

use

Materials:

complete body

plastic components

Code:

inlet max – 500 mbar

≤ 50μm – Viledon cartridge

1/8” NPT

Not aggressive gases of three families – Natural Gas – LPG –

Town Gas

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

WhitePOM/Pa66+25%Gf

color

range mbar

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out

Gas Governor with filter and test point in/out
