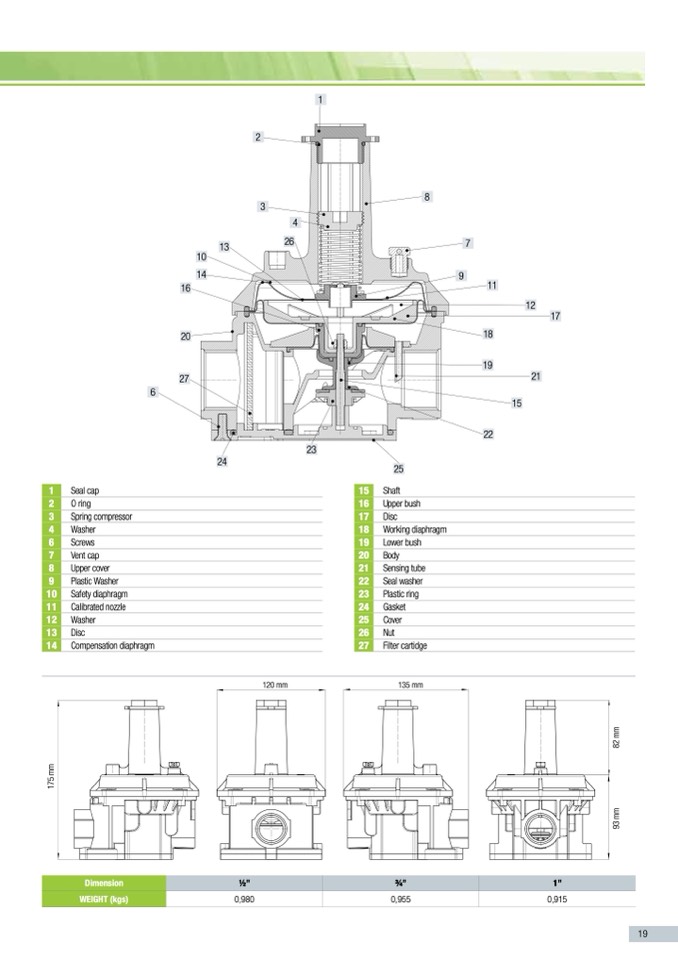

1

Seal cap

2

O ring

3

Spring compressor

4

Washer

6

Screws

7

Vent cap

8

Upper cover

9

Plastic Washer

10 Safety diaphragm

11 Calibrated nozzle

12 Washer

13 Disc

14 Compensation diaphragm

15

16

17

18

19

20

21

22

23

24

25

26

27

25

Shaft

Upper bush

Disc

Working diaphragm

Lower bush

Body

Sensing tube

Seal washer

Plastic ring

Gasket

Cover

Nut

Filter cartidge

135 mm

Dimension

wEIGHT (kgs)

1⁄2”

0,980

3⁄4”

0,955

1”

0,915

16

20

27

6

24

12

17

21

1

26

14

9

13

10

7

11

18

19

15

22

2

3

4

8

120 mm

23

9

3

m

m

8

2

m

m

1

7

5

m

m

19
