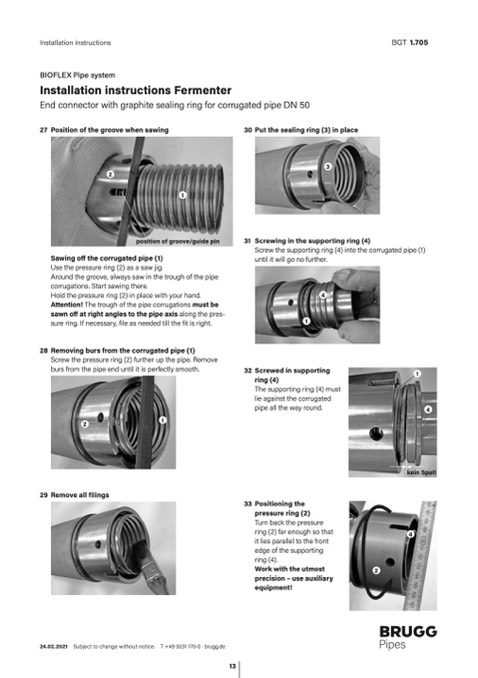

Installation instructions

BGT 1.705

BIOFLEX Pipe system

Installation instructions Fermenter

End connector with graphite sealing ring for corrugated pipe DN 50

27 Position of the groove when sawing

30 Put the sealing ring (3) in place

3

31 Screwinginthesupportingring(4)

Screw the supporting ring (4) into the corrugated pipe (1)

until it will go no further.

2

Sawing off the corrugated pipe (1)

Use the pressure ring (2) as a saw jig.

Around the groove, always saw in the trough of the pipe

corrugations. Start sawing there.

Hold the pressure ring (2) in place with your hand.

Attention! The trough of the pipe corrugations must be

sawn off at right angles to the pipe axis along the pres-

sure ring. If necessary, file as needed till the fit is right.

28 Removing burs from the corrugated pipe (1)

Screw the pressure ring (2) further up the pipe. Remove

burs from the pipe end until it is perfectly smooth.

4

32 Screwed in supporting

ring (4)

The supporting ring (4) must

lie against the corrugated

pipe all the way round.

33 Positioning the

pressure ring (2)

Turn back the pressure

ring (2) far enough so that

it lies parallel to the front

edge of the supporting

ring (4).

Work with the utmost

precision – use auxiliary

equipment!

Page 6

1

positionofgroove/guidepin

1

2

29 Remove all filings

1

1

4

kein Spalt

4

24.02.2021

Subject to change without notice.

T +49 5031 170-0 · brugg.de

2

13
