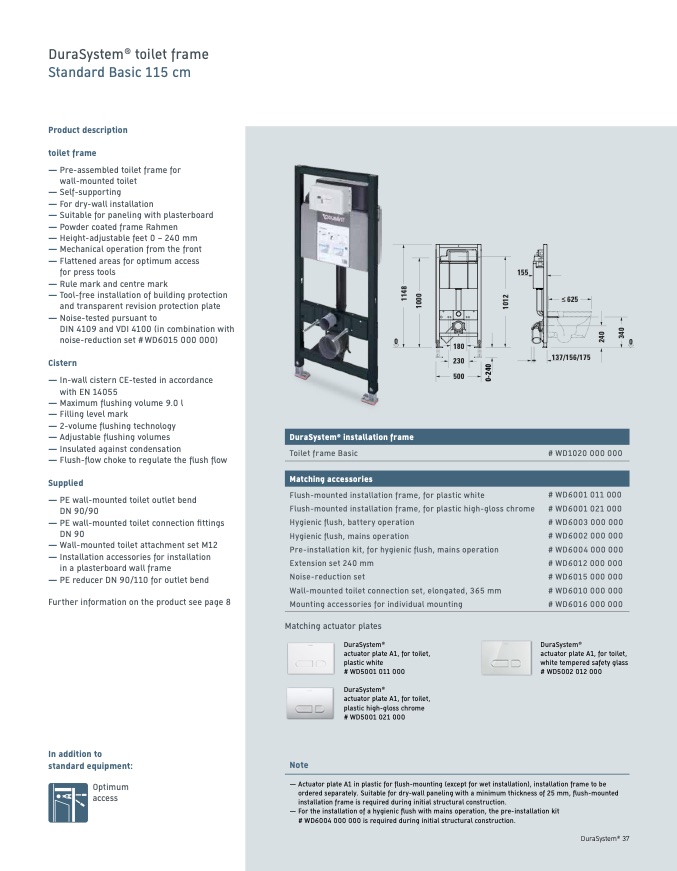

DuraSystem

®

toilet frame

Standard Basic 115 cm

Product description

toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame Rahmen

— Height-adjustable feet 0 – 240 mm

— Mechanical operation from the front

— Flattened areas for optimum access

for press tools

— Rule mark and centre mark

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to

DIN 4109 and VDI 4100 (in combination with

noise-reduction set # WD6015 000 000)

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— PE wall-mounted toilet outlet bend

DN 90/90

— PE wall-mounted toilet connection fittings

DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation

in a plasterboard wall frame

— PE reducer DN 90/110 for outlet bend

Further information on the product see page 8

155

In addition to

standard equipment:

Optimum

access

Note

0

DuraSystem

®

installation frame

Toilet frame Basic

Matching accessories

180

230

500

≥ 625

137/156/175

# WD1020 000 000

# WD6001 011 000

# WD6001 021 000

# WD6003 000 000

# WD6002 000 000

# WD6004 000 000

# WD6012 000 000

# WD6015 000 000

# WD6010 000 000

# WD6016 000 000

DuraSystem

®

actuator plate A1, for toilet,

white tempered safety glass

# WD5002 012 000

0

0

-

2

4

0

2

4

0

3

4

0

1

1

4

8

1

0

0

0

1

0

1

2

Flush-mounted installation frame, for plastic white

Flush-mounted installation frame, for plastic high-gloss chrome

Hygienic flush, battery operation

Hygienic flush, mains operation

Pre-installation kit, for hygienic flush, mains operation

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Mounting accessories for individual mounting

Matching actuator plates

DuraSystem

®

actuator plate A1, for toilet,

plastic white

# WD5001 011 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

— Actuator plate A1 in plastic for flush-mounting (except for wet installation), installation frame to be

ordered separately. Suitable for dry-wall paneling with a minimum thickness of 25 mm, flush-mounted

installation frame is required during initial structural construction.

— For the installation of a hygienic flush with mains operation, the pre-installation kit

# WD6004 000 000 is required during initial structural construction.

DuraSystem

®
