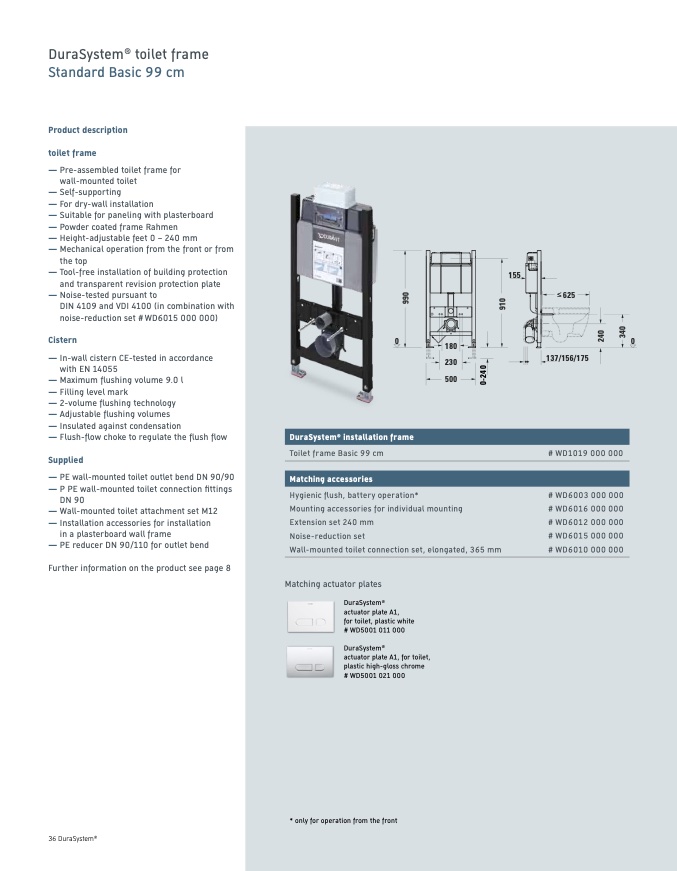

DuraSystem

®

toilet frame

Standard Basic 99 cm

Product description

toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame Rahmen

— Height-adjustable feet 0 – 240 mm

— Mechanical operation from the front or from

the top

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to

DIN 4109 and VDI 4100 (in combination with

noise-reduction set # WD6015 000 000)

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— PE wall-mounted toilet outlet bend DN 90/90

— P PE wall-mounted toilet connection fittings

DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation

in a plasterboard wall frame

— PE reducer DN 90/110 for outlet bend

Further information on the product see page 8

155

0

-

2

4

0

2

4

0

3

4

0

9

9

0

9

1

0

36 DuraSystem

®

0

DuraSystem

®

installation frame

Toilet frame Basic 99 cm

Matching accessories

180

230

500

≥ 625

137/156/175

# WD1019

# WD6003

# WD6016

# WD6012

# WD6015

# WD6010

0

Hygienic flush, battery operation*

Mounting accessories for individual mounting

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plates

DuraSystem

®

actuator plate A1,

for toilet, plastic white

# WD5001 011 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

000 000

000 000

000 000

000 000

000 000

000 000

* only for operation from the front
