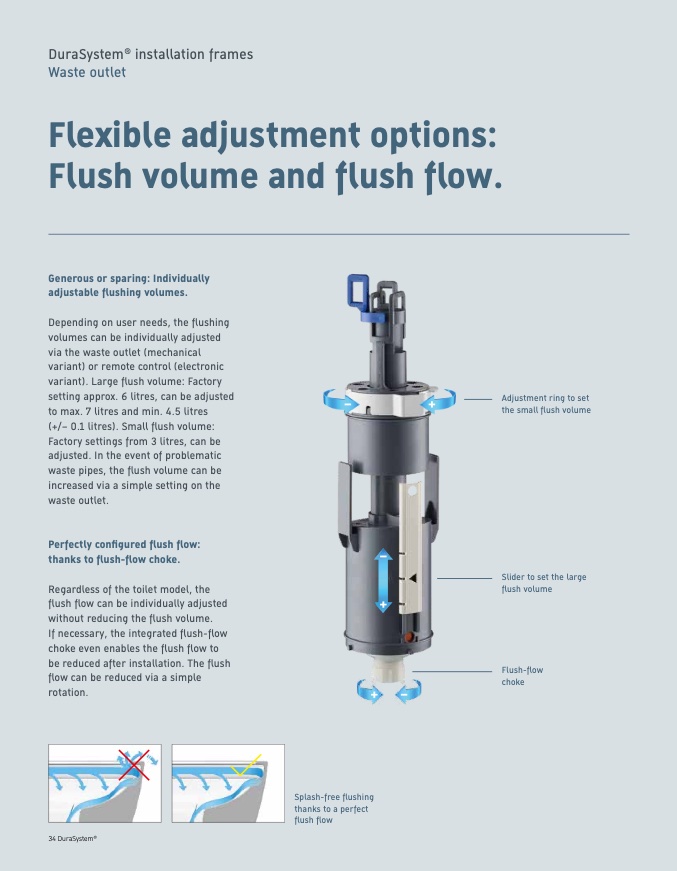

DuraSystem

®

installation frames

Waste outlet

Flexible adjustment options:

Flush volume and flush flow.

Generous or sparing: Individually

adjustable flushing volumes.

Depending on user needs, the flushing

volumes can be individually adjusted

via the waste outlet (mechanical

variant) or remote control (electronic

variant). Large flush volume: Factory

setting approx. 6 litres, can be adjusted

to max. 7 litres and min. 4.5 litres

(+/– 0.1 litres). Small flush volume:

Factory settings from 3 litres, can be

adjusted. In the event of problematic

waste pipes, the flush volume can be

increased via a simple setting on the

waste outlet.

Perfectly configured flush flow:

thanks to flush-flow choke.

Regardless of the toilet model, the

flush flow can be individually adjusted

without reducing the flush volume.

If necessary, the integrated flush-flow

choke even enables the flush flow to

be reduced after installation. The flush

flow can be reduced via a simple

rotation.

Adjustment ring to set

the small flush volume

Slider to set the large

flush volume

Flush-flow

choke

34 DuraSystem

®

Splash-free flushing

thanks to a perfect

flush flow
