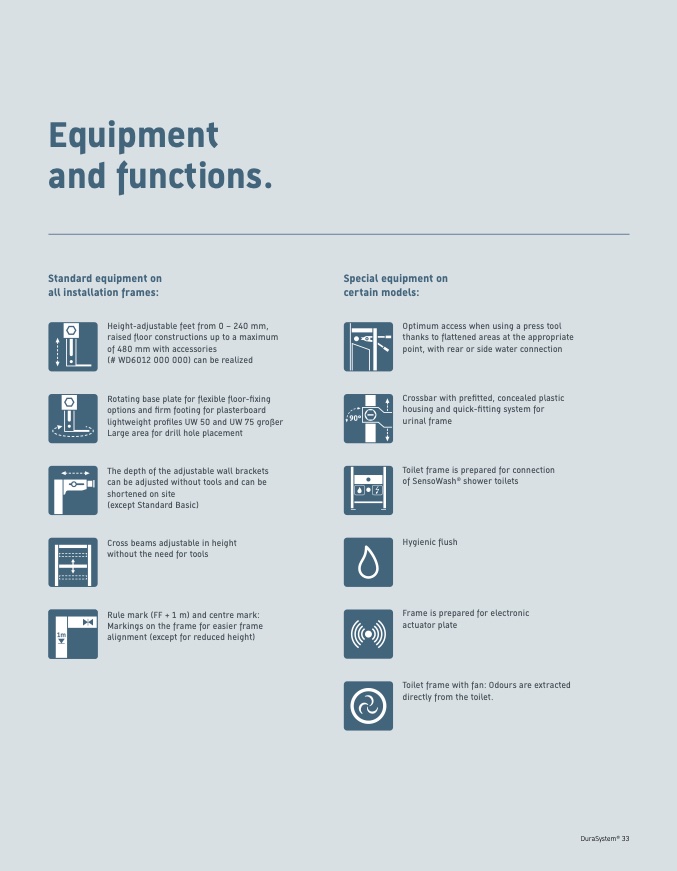

Equipment

and functions.

Standard equipment on

all installation frames:

Height-adjustable feet from 0 – 240 mm,

raised floor constructions up to a maximum

of 480 mm with accessories

(# WD6012 000 000) can be realized

Rotating base plate for flexible floor-fixing

options and firm footing for plasterboard

lightweight profiles UW 50 and UW 75 großer

Large area for drill hole placement

The depth of the adjustable wall brackets

can be adjusted without tools and can be

shortened on site

(except Standard Basic)

Cross beams adjustable in height

without the need for tools

Rule mark (FF + 1 m) and centre mark:

Markings on the frame for easier frame

alignment (except for reduced height)

Special equipment on

certain models:

Optimum access when using a press tool

thanks to flattened areas at the appropriate

point, with rear or side water connection

Crossbar with prefitted, concealed plastic

housing and quick-fitting system for

urinal frame

Toilet frame is prepared for connection

of SensoWash

®

shower toilets

Hygienic flush

Frame is prepared for electronic

actuator plate

Toilet frame with fan: Odours are extracted

directly from the toilet.
