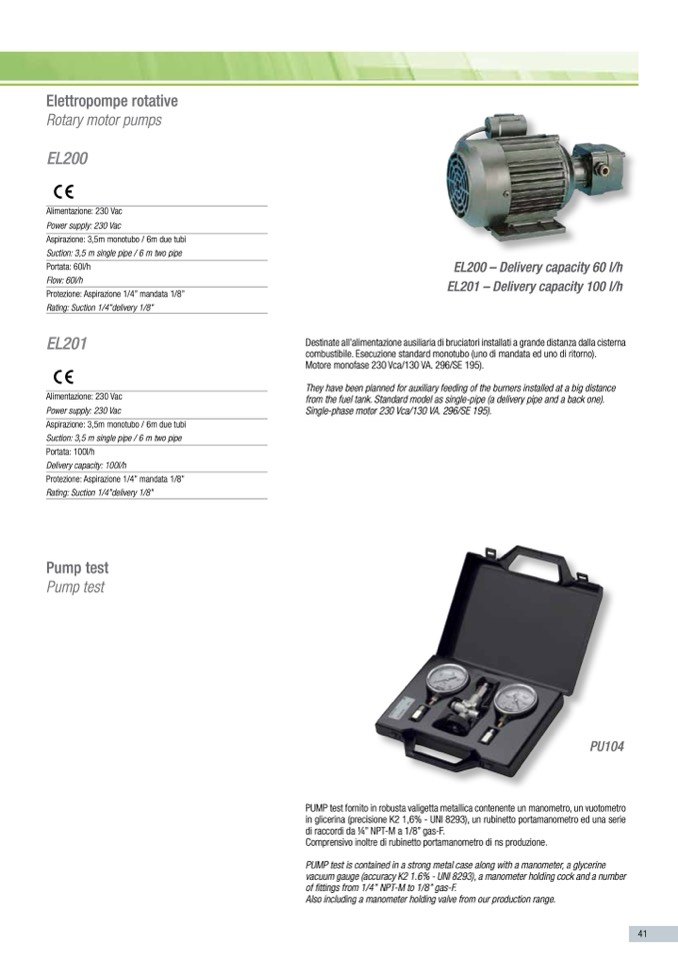

Elettropompe rotative

Rotary motor pumps

EL200

Alimentazione: 230 Vac

Power supply: 230 Vac

Aspirazione: 3,5m monotubo / 6m due tubi

Suction: 3,5 m single pipe / 6 m two pipe

Portata: 60l/h

Flow: 60l/h

Protezione: Aspirazione 1/4” mandata 1/8”

Rating: Suction 1/4”delivery 1/8”

EL201

Alimentazione: 230 Vac

Power supply: 230 Vac

Aspirazione: 3,5m monotubo / 6m due tubi

Suction: 3,5 m single pipe / 6 m two pipe

Portata: 100l/h

Delivery capacity: 100l/h

Protezione: Aspirazione 1/4” mandata 1/8”

Rating: Suction 1/4”delivery 1/8”

Pump test

Pump test

EL200 – Delivery capacity 60 l/h

EL201 – Delivery capacity 100 l/h

destinate all’alimentazione ausiliaria di bruciatori installati a grande distanza dalla cisterna

combustibile. Esecuzione standard monotubo (uno di mandata ed uno di ritorno).

Motore monofase 230 Vca/130 VA. 296/SE 195).

They have been planned for auxiliary feeding of the burners installed at a big distance

from the fuel tank. Standard model as single-pipe (a delivery pipe and a back one).

Single-phase motor 230 Vca/130 VA. 296/SE 195).

PuMP test fornito in robusta valigetta metallica contenente un manometro, un vuotometro

in glicerina (precisione K2 1,6% - uNI 8293), un rubinetto portamanometro ed una serie

di raccordi da 1⁄4” NPT-M a 1/8” gas-F.

Comprensivo inoltre di rubinetto portamanometro di ns produzione.

PUMP test is contained in a strong metal case along with a manometer, a glycerine

vacuum gauge (accuracy K2 1.6% - UNI 8293), a manometer holding cock and a number

of fittings from 1/4’’ NPT-M to 1/8” gas-F.

Also including a manometer holding valve from our production range.

PU10 4
