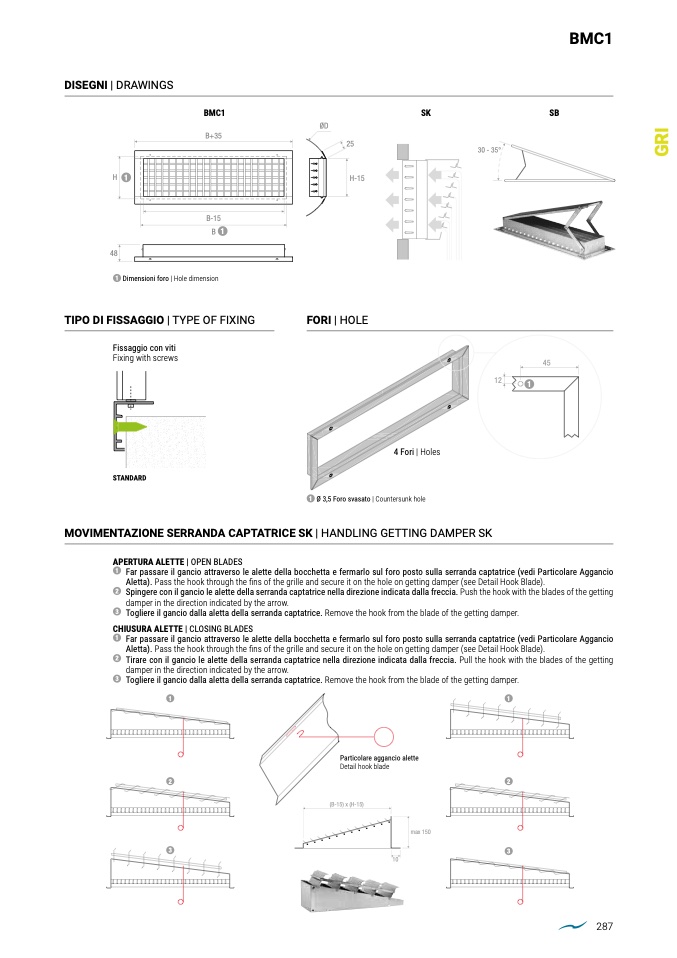

DISEGNI | DRAWINGS

H

48

1

BMC1

B+35

B-15

B1

Dimensioni foro | Hole dimension

SK

SB

TIPO DI FISSAGGIO | TYPE OF FIXING

Fissaggio con viti

Fixing with screws

STANDARD

45

12

MOVIMENTAZIONE SERRANDA CAPTATRICE SK | HANDLING GETTING DAMPER SK

ØD

25

H-15

B

1

FORI | HOLE

30 - 35°

CT

1

4 Fori | Holes CT

Ø 3,5 Foro svasato | Countersunk hole

CTKC

APERTURA ALETTE | OPEN BLADES

1

Far passare il gancio attraverso le alette della bocchetta e fermarlo sul foro posto sulla serranda captatrice (vedi Particolare Aggancio

Aletta). Pass the hook through the

fins of the grille and secure it on the hole on getting damper (see Detail Hook Blade).

2

Spingere con il gancio le alette della serranda captatrice nella direzione indicata dalla freccia. Push the hook with the blades of the getting

damper in the direction indicated by the arrow.

3

Togliere il gancio dalla aletta della serranda captatrice. Remove the hook from the blade of the getting damper.

CHIUSURA ALETTE | CLOSING BLADES

1

Far passare il gancio attraverso le alette della bocchetta e fermarlo sul foro posto sulla serranda captatrice (vedi Particolare Aggancio

Aletta). Pass the hook through the

fins of the grille and secure it on the hole on getting damper (see Detail Hook Blade).

2

Tirare con il gancio le alette della serranda captatrice nella direzione indicata dalla freccia. Pull the hook with the blades of the getting

damper in the direction indicated by the arrow.

3

Togliere il gancio dalla aletta della serranda captatrice. Remove the hook from the blade of the getting damper.

1

1

Particolare aggancio alette

Detail hook blade

2

2

(B-15) x (H-15)

max 150

3

3

10

1

BMC1

287

G

R

I

1

H

-

1

5

m

m

Hx

x

B

-

1

5

m

m

H

+

3

5

x

B

+

3

5
