G

R

I

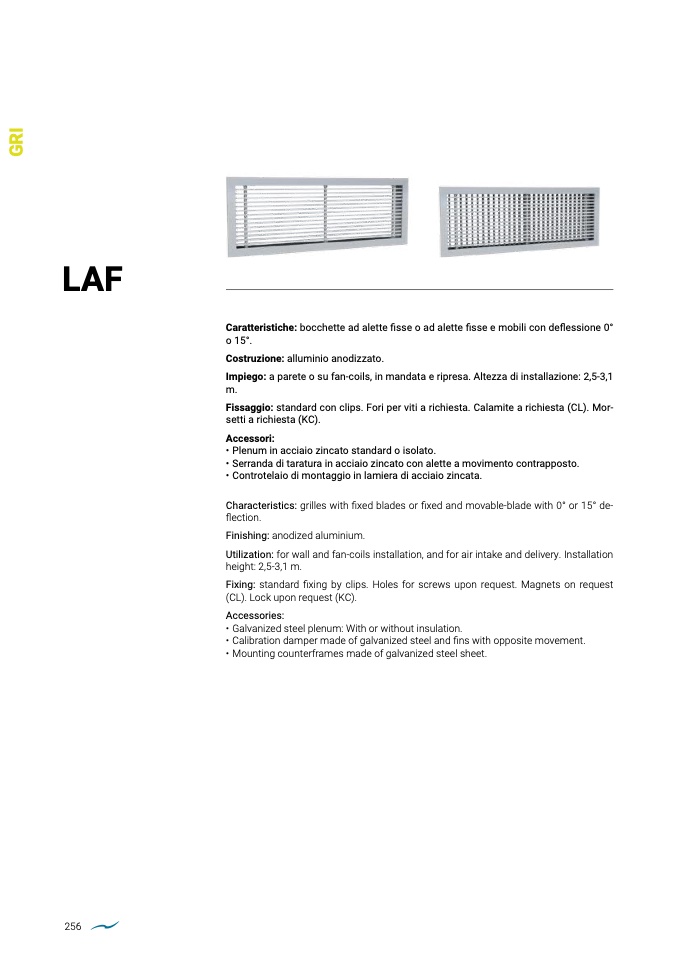

LAF

256

Caratteristiche: bocchette ad alette

fisse o ad alette fisse e mobili con de

flessione 0°

o 15°.

Costruzione: alluminio anodizzato.

Impiego: a parete o su fan-coils, in mandata e ripresa. Altezza di installazione: 2,5-3,1

m.

Fissaggio: standard con clips. Fori per viti a richiesta. Calamite a richiesta (CL). Mor-

setti a richiesta (KC).

Accessori:

• Plenum in acciaio zincato standard o isolato.

• Serranda di taratura in acciaio zincato con alette a movimento contrapposto.

• Controtelaio di montaggio in lamiera di acciaio zincata.

Characteristics: grilles with

fixed blades or fixed and movable-blade with 0° or 15° de-

flection.

Finishing: anodized aluminium.

Utilization: for wall and fan-coils installation, and for air intake and delivery. Installation

height: 2,5-3,1 m.

Fixing: standard fixing by clips. Holes for screws upon request. Magnets on request

(CL). Lock upon request (KC).

Accessories:

• Galvanized steel plenum: With or without insulation.

• Calibration damper made of galvanized steel and fins with opposite movement.

• Mounting counterframes made of galvanized steel sheet.
