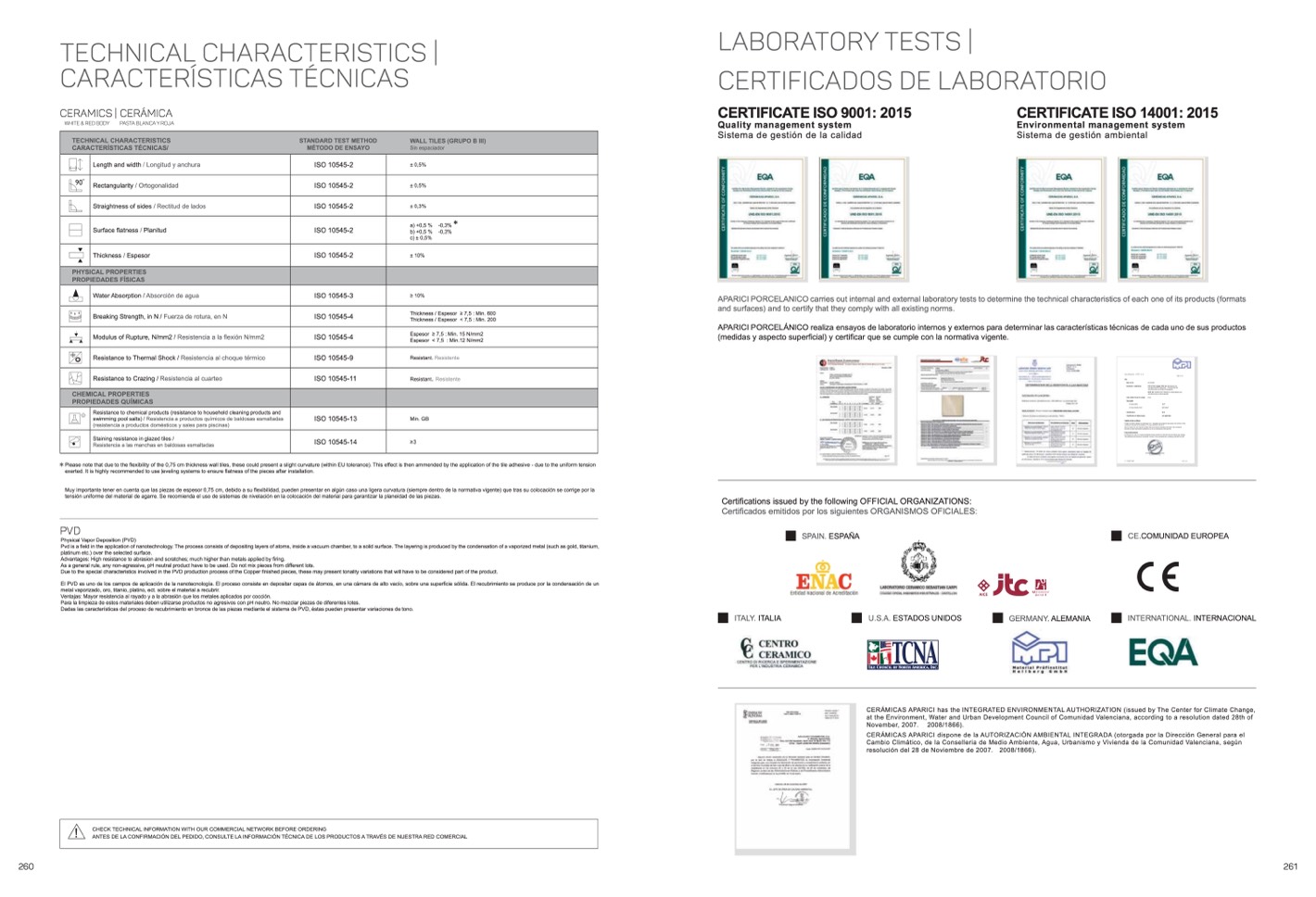

TECHNICAL CHARACTERISTICS |

CARACTERÍSTICAS TÉCNICAS

CERAMICS | CERÁMICA

LABORATORY TESTS |

CERTIFICADOS DE LABORATORIO

WHITE & RED BODY

PASTA BLANCA Y ROJA

CERTIFICATE ISO 9001: 2015

Quality management system

Sistema de gestión de la calidad

CERTIFICATE ISO 14001: 2015

Environmental management system

Sistema de gestión ambiental

TECHNICAL CHARACTERISTICS

CARACTERÍSTICAS TÉCNICAS/

STANDARD TEST METHOD

MÉTODO DE ENSAYO

WALL TILES (GRUPO B III)

Sin espaciador

Length and width / Longitud y anchura

ISO 10545-2

± 0,5%

Rectangularity / Ortogonalidad

ISO 10545-2

± 0,5%

Straightness of sides / Rectitud de lados

ISO 10545-2

± 0,3%

Surface flatness

/ Planitud

ISO 10545-2

a) +0,5 % -0,3%

*

b) +0,5 % -0,3%

c) ± 0,5%

Thickness / Espesor

ISO 10545-2

± 10%

PHYSICAL PROPERTIES

PROPIEDADES FÍSICAS

Water Absorption / Absorción de agua

ISO 10545-3

≥ 10%

Breaking Strength, in N / Fuerza de rotura, en N

ISO 10545-4

Thickness / Espesor ≥ 7,5 : Min. 600

Thickness / Espesor < 7,5 : Min. 200

Modulus of Rupture, N/mm2 /

Resistencia a la flexión N/mm2

Resistance to Thermal Shock / Resistencia al choque térmico

Resistance to Crazing / Resistencia al cuarteo

CHEMICAL PROPERTIES

PROPIEDADES QUÍMICAS

ISO 10545-4

ISO 10545-9

ISO 10545-11

Espesor ≥ 7,5 : Min. 15 N/mm2

Espesor < 7,5 : Min.12 N/mm2

Resistant. Resistente

Resistant

. Resistente

Resistance to chemical products (resistance to household cleaning products and

swimming pool salts) / Resistencia a productos químicos de baldosas esmaltadas

(resistencia a productos domésticos y sales para piscinas)

ISO 10545-13

Min. GB

Staining resistance in glazed tiles /

Resistencia a las manchas en baldosas esmaltadas

ISO 10545-14

≥3

Please note that due to the flexibility of the 0,75 cm thickness wall tiles, these could present a slight curvature (within EU tolerance). This effect is then ammended by the application of the tile adhesive - due to the uniform tension

exerted. It is highly recommended to use l

eveling systems to ensure flatness of the pieces after installation.

Muy importante tener en cuenta que las piezas de espesor 0,75 cm, debido a su flexibilidad, pueden presentar en algún caso una ligera curvatura (siempre dentro de la normativa vigente) que tras su colocación se corrige por la

tensión uniforme del material de agarre. Se recomienda el uso de sistemas de nivelación en la colocación del material para garantizar la planeidad de las piezas.

PVD

Physical Vapor Deposition (PVD)

Pvd is a field in the application of nanotechnology. The process consists of depositing layers of atoms, inside a vacuum chamber, to a solid surface. The layering is produced by the condensation of a vaporized metal (such as gold, titanium,

platinum etc.) over the selected surface.

Advantages: High resistance to abrasion and scratches; much higher than metals applied by firing.

As a general rule, any non-agressive, pH neutral product have to be used. Do not mix pieces from different lots.

Due to the special characteristics involved in the PVD production process of the Copper finished pieces, these may present tonality variations that will have to be considered part of the product.

El PVD es uno de los campos de aplicación de la nanotecnolog

ía. El proceso consiste en depositar capas de átomos, en una cámara de alto vacío, sobre una superficie sólida. El recubrimiento se produce por la condensación de un

metal vaporizado, oro, titanio, platino, ect. sobre el material a recubrir.

Ventajas: Mayor resistencia al rayado y a la abrasión que los metales aplicados por cocci

ón.

Para la limpieza de estos materiales deben utilizarse productos no agresivos con pH neutro. No mezclar piezas de diferentes lotes.

Dadas las características del proceso de recubrimiento en bronce de las piezas mediante el sistema de PVD, éstas pueden presentar variaciones de tono.

Certifications issued by the following OFFICIAL ORGANIZATIONS:

Certificados emitidos por los siguientes ORGANISMOS OFICIALES:

SPAIN. ESPAÑA

CE.COMUNIDAD EUROPEA

INTERNATIONAL. INTERNACIONAL

APARICI PORCELANICO carries out internal and external laboratory tests to determine the technical characteristics of each one of its products (formats

and surfaces) and to certify that they comply with all existing norms.

APARICI PORCELÁNICO realiza ensayos de laboratorio internos y externos para determinar las características técnicas de cada uno de sus productos

(medidas y aspecto superficial) y certificar que se cumple con la normativa vigente.

Test certificate No.: 12 7037 - S / 14

Test

Date of test:

Standards / regulations:

Joint width of item for testing:

Test result:

Average angle:

Average displacement:

Classification:

Classification of displacement:

Validity of this certificate

Page 2 of 2

03.04.2014

DIN 51130 (Ausgabe 2010-10): Bestimmung der

rutschhemmenden Eigenschaft – Arbeitsräume und

Arbeitsbereiche mit erhöhter Rutschgefahr.

BGR 181: Merkblatt für Fußböden in Arbeitsräumen und

Arbeitsbereichen mit Rutschgefahr.

0 cm

16,3°

not tested

R 10

not applicable

Owing to possible changes in regulations (test / standards) and technical innovations, the validity of this

certificate is limited for the duration of 5 years until the 03.04.2019.

The test results are only valid for produts which are identical with the tested item. The correlation

between the item tested and the production lot is not controlled by MPI test lab!

General informations

Certificates may only be copied and published with permission of the MPI test lab without any changes.

The publishing and copying of shortened versions is only permitted after consulting with MPI test lab.

7037-14

Aparici engl

Seite 2 von 2

MPI Materialprüfung und Entwicklung

(Leitung Jens Hellberg)

ITALY. ITALIA

U.S.A. ESTADOS UNIDOS

GERMANY. ALEMANIA

260

261

!

CHECK TECHNICAL INFORMATION WITH OUR COMMERCIAL NETWORK BEFORE ORDERING

ANTES DE LA CONFIRMACIÓN DEL PEDIDO, CONSULTE LA INFORMACIÓN TÉCNICA DE LOS PRODUCTOS A TRAVÉS DE NUESTRA RED COMERCIAL

CERÁMICAS APARICI has the INTEGRATED ENVIRONMENTAL AUTHORIZATION (issued by The Center for Climate Change,

at the Environment, Water and Urban Development Council of Comunidad Valenciana, according to a resolution dated 28th of

November, 2007.

2008/1866).

CERÁMICAS APARICI dispone de la AUTORIZACIÓN AMBIENTAL INTEGRADA (otorgada por la Dirección General para el

Cambio Climático, de la Conselleria de Medio Ambiente, Agua, Urbanismo y Vivienda de la Comunidad Valenciana, según

resolución del 28 de Noviembre de 2007. 2008/1866).
