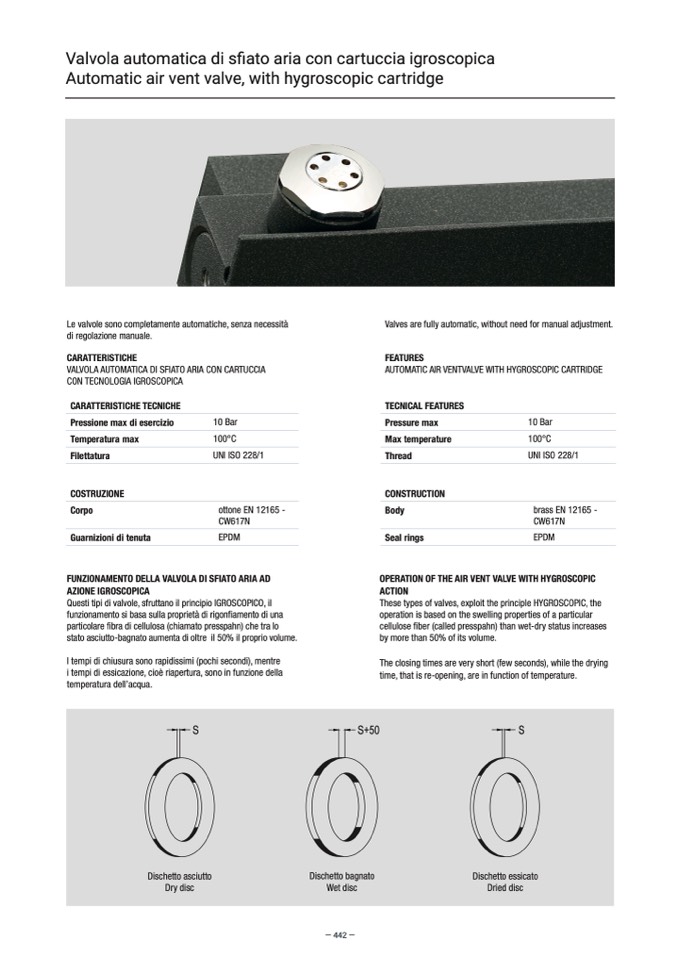

alola atomatica i sfiato aria con cartccia igroscoica

Automatic air vent valve, with hygroscopic cartridge

Le valvole sono completamente automatiche, senza necessità

di regolazione manuale.

CARATTERISTICHE

VALVOLA AUTOMATICA DI SFIATO ARIA CON CARTUCCIA

CON TECNOLOGIA IGROSCOPICA

Valves are fully automatic, without need for manual adjustment.

FEATURES

AUTOMATIC AIR VENTVALVE WITH HYGROSCOPIC CARTRIDGE

CARATTERISTICHE TECNICHE

Pressione max di esercizio

Temperatura max

Filettatura

COSTRUZIONE

Corpo

Guarnizioni di tenuta

10 Bar

100°C

UNI ISO 228/1

ottone EN 12165 -

CW617N

EPDM

TECNICAL FEATURES

Pressure max

Max temperature

Thread

CONSTRUCTION

Body

Seal rings

10 Bar

100°C

UNI ISO 228/1

brass EN 12165 -

CW617N

EPDM

FUNZIONAMENTO DELLA VALVOLA DI SFIATO ARIA AD

AZIONE IGROSCOPICA

Questi tipi di valvole, sfruttano il principio IGROSCOPICO, il

funzionamento si basa sulla proprietà di rigonfiamento di una

particolare fibra di cellulosa (chiamato presspahn) che tra lo

stato asciutto-bagnato aumenta di oltre il 50% il proprio volume.

I tempi di chiusura sono rapidissimi (pochi secondi), mentre

i tempi di essicazione, cioè riapertura, sono in funzione della

temperatura dell’acqua.

OPERATION OF THE AIR VENT VALVE WITH HYGROSCOPIC

ACTION

These types of valves, exploit the principle HYGROSCOPIC, the

operation is based on the swelling properties of a particular

cellulose fiber (called presspahn) than wet-dry status increases

by more than 50% of its volume.

The closing times are very short (few seconds), while the drying

time, that is re-opening, are in function of temperature.

S

S+50

S

Dischetto asciutto

Dischetto bagnato

Dischetto essicato

Dry disc

Wet disc

Dried disc
