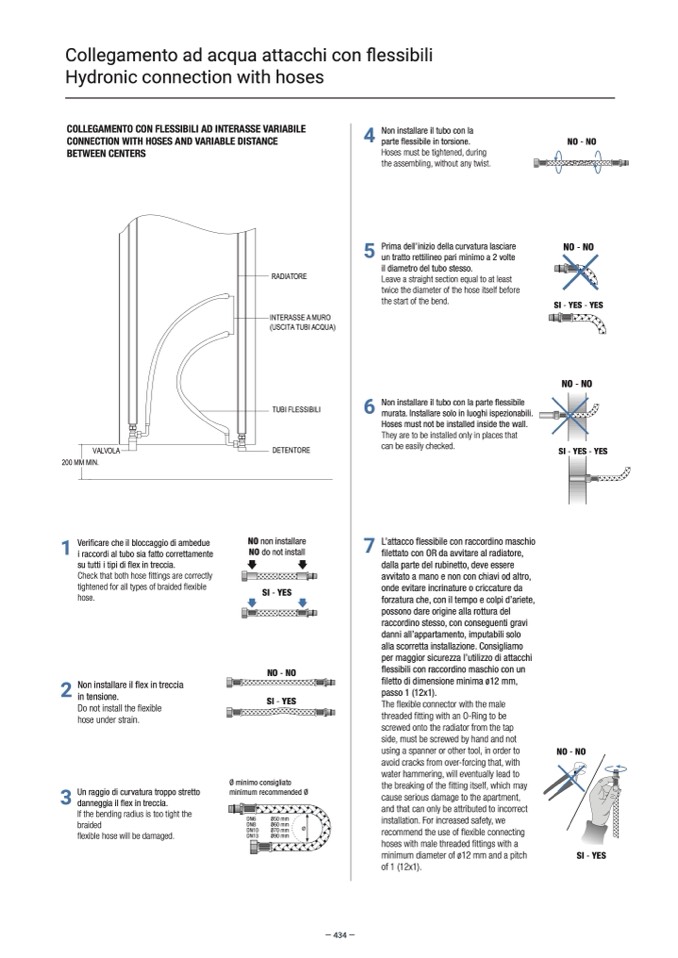

ollegamento a aca attacci con essibili

Hydronic connection with hoses

COLLEGAMENTO CON FLESSIBILI AD INTERASSE VARIABILE

CONNECTION WITH HOSES AND VARIABLE DISTANCE

BETWEEN CENTERS

4

Non installare il tubo con la

parte flessibile in torsione.

Hoses must be tightened, during

the assembling, without any twist.

5

Prima dell’inizio della curvatura lasciare

un tratto rettilineo pari minimo a 2 volte

il diametro del tubo stesso.

Leave a straight section equal to at least

twice the diameter of the hose itself before

the start of the bend.

6

Non installare il tubo con la parte flessibile

murata. Installare solo in luoghi ispezionabili.

Hoses must not be installed inside the wall.

They are to be installed only in places that

can be easily checked.

7

L’attacco flessibile con raccordino maschio

filettato con OR da avvitare al radiatore,

dalla parte del rubinetto, deve essere

avvitato a mano e non con chiavi od altro,

onde evitare incrinature o criccature da

forzatura che, con il tempo e colpi d’ariete,

possono dare origine alla rottura del

raccordino stesso, con conseguenti gravi

danni all’appartamento, imputabili solo

alla scorretta installazione. Consigliamo

per maggior sicurezza l’utilizzo di attacchi

flessibili con raccordino maschio con un

filetto di dimensione minima ø12 mm,

passo 1 (12x1).

The flexible connector with the male

threaded fitting with an O-Ring to be

screwed onto the radiator from the tap

side, must be screwed by hand and not

using a spanner or other tool, in order to

avoid cracks from over-forcing that, with

water hammering, will eventually lead to

the breaking of the fitting itself, which may

cause serious damage to the apartment,

and that can only be attributed to incorrect

installation. For increased safety, we

recommend the use of flexible connecting

hoses with male threaded fittings with a

minimum diameter of ø12 mm and a pitch

of 1 (12x1).

NO - NO

NO - NO

SI - YES - YES

NO - NO

SI - YES - YES

VALVOLA

200 MM MIN.

1

Verificare che il bloccaggio di ambedue

i raccordi al tubo sia fatto correttamente

su tutti i tipi di flex in treccia.

Check that both hose fittings are correctly

tightened for all types of braided flexible

hose.

2

Non installare il flex in treccia

in tensione.

Do not install the flexible

hose under strain.

3

Un raggio di curvatura troppo stretto

danneggia il flex in treccia.

If the bending radius is too tight the

braided

flexible hose will be damaged.

RADIATORE

INTERASSE A MURO

(USCITA TUBI ACQUA)

TUBI FLESSIBILI

DETENTORE

NO non installare

NO do not install

SI - YES

NO - NO

SI - YES

Ø minimo consigliato

minimum recommended Ø

DN6

Ø50 mm

DN8

Ø60 mm

DN10

Ø70 mm

DN13

Ø90 mm

NO - NO

SI - YES

— 434 —
