Identification code

Dip tube

connection

Orientamento

11.2.110.0075

2”

180°

11.2.110.0076

2”

360°

Identification code

Diametro

Work zone scala

Lunghezza

20.2.110.0150

39 38-45 bar

0 -100 bar

62 mm

Identification code

Diametro

Work zone scala

Lunghezza

20.2.110.0151

39 38-45 bar

0 -100 bar

47,5 mm

Identification

code

Inlet

Outlet

Dip tube

connection

Safety valve

Calibration

75.2.090.9885

M30x1,5

G. 1/8”

G. 1/8”

27±2,5 bar

Identification

code

Inlet

Outlet

Dip tube

connection

Actuator

connection

Solenoid

connection

Disk

caibration

Pressure

gauge

connection

76.2.190.0245

M30x1,5

3⁄4” 20- UNEF

/ or 1⁄2” BSPT

with adaptor

Diam 16 mm

1” BSP

1” BSP

34,5±10% bar

18 mmq

34

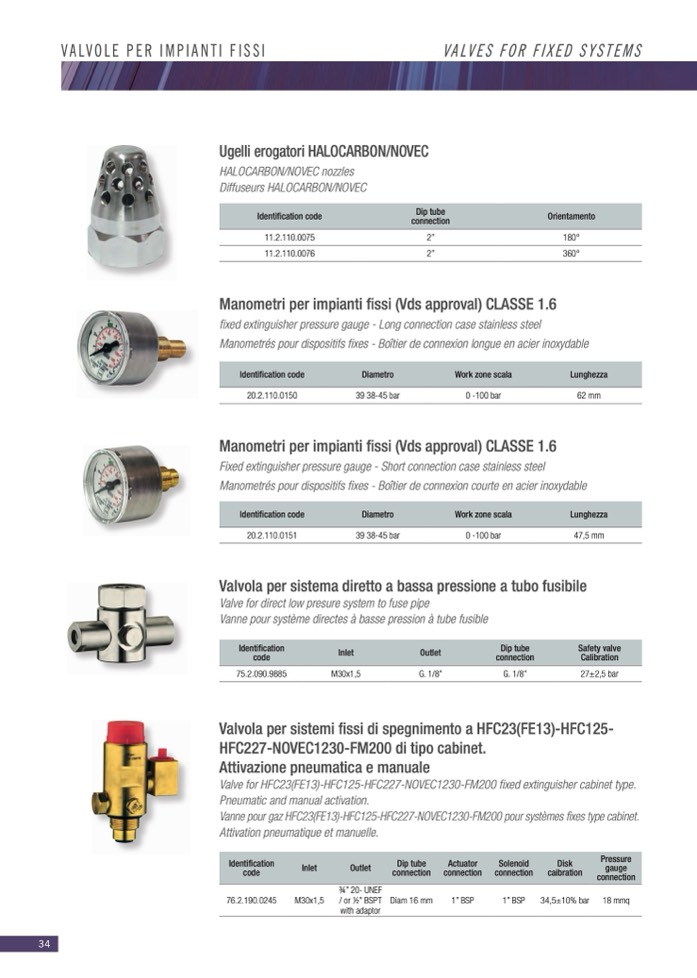

VALVOLE PER IMPIANTI FISSI

VALVES FOR FIXED SYSTEMS

Ugelli erogatori HALOCARBON/NOVEC

HALOCARBON/NOVEC nozzles

Diffuseurs HALOCARBON/NOVEC

Manometri per impianti fissi (Vds approval) CLASSE 1.6

fixed extinguisher pressure gauge - Long connection case stainless steel

Manometrés pour dispositifs fixes - Boîtier de connexion longue en acier inoxydable

Manometri per impianti fissi (Vds approval) CLASSE 1.6

Fixed extinguisher pressure gauge - Short connection case stainless steel

Manometrés pour dispositifs fixes - Boîtier de connexion courte en acier inoxydable

Valvola per sistema diretto a bassa pressione a tubo fusibile

Valve for direct low presure system to fuse pipe

Vanne pour système directes à basse pression à tube fusible

Valvola per sistemi fissi di spegnimento a HFC23(FE13)-HFC125-

HFC227-NOVEC1230-FM200 di tipo cabinet.

Attivazione pneumatica e manuale

Valve for HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 fixed extinguisher cabinet type.

Pneumatic and manual activation.

Vanne pour gaz HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 pour systèmes fixes type cabinet.

Attivation pneumatique et manuelle.
