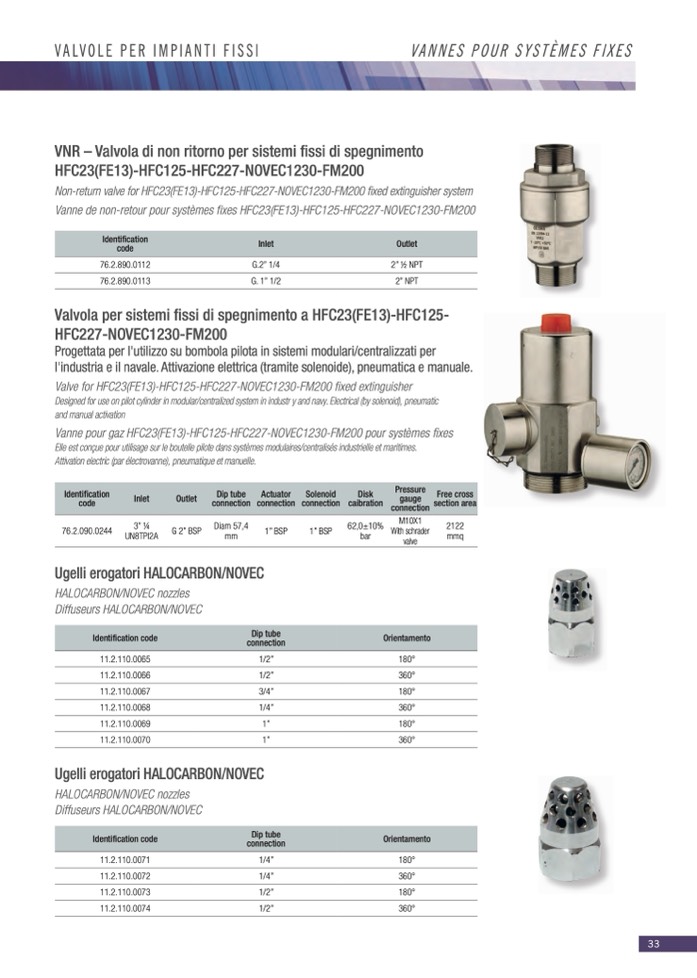

VALVOLE PER IMPIANTI FISSI
VANNES POUR SYSTÈMES FIXES
VNR – Valvola di non ritorno per sistemi fissi di spegnimento
HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200
Non-return valve for HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 fixed extinguisher system
Vanne de non-retour pour systèmes fixes HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200
Valvola per sistemi fissi di spegnimento a HFC23(FE13)-HFC125-
HFC227-NOVEC1230-FM200
Progettata per l'utilizzo su bombola pilota in sistemi modulari/centralizzati per
l'industria e il navale. Attivazione elettrica (tramite solenoide), pneumatica e manuale.
Valve for HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 fixed extinguisher
Designed for use on pilot cylinder in modular/centralized system in industr y and navy. Electrical (by solenoid), pneumatic
and manual activation
Vanne pour gaz HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 pour syst
èmes fixes
Elle est conçue pour utilisage sur le boutelle pilote dans systèmes modulaires/centralisés industrielle et maritimes.
Attivation electric (par électrovanne), pneumatique et manuelle.
Ugelli erogatori HALOCARBON/NOVEC
HALOCARBON/NOVEC nozzles
Diffuseurs HALOCARBON/NOVEC
Identification
code
Inlet
Outlet
76.2.890.0112
G.2” 1/4
2” 1⁄2 NPT
76.2.890.0113
G. 1” 1/2
2” NPT
Identification
code
Inlet
Outlet
Dip tube
connection
Actuator
connection
Solenoid
connection
Disk
caibration
Pressure
gauge
connection
Free cross
section area
76.2.090.0244
3”1⁄4
UN8TPI2A
G 2” BSP
Diam 57,4
mm
1” BSP
1” BSP
62,0±10%
bar
M10X1
With schrader
valve
2122
mmq
Identification code
Dip tube
connection
Orientamento
11.2.110.0065
1/2”
180°
11.2.110.0066
1/2”
360°
11.2.110.0067
3/4”
180°
11.2.110.0068
1/4”
360°
11.2.110.0069
1”
180°
11.2.110.0070
1”
360°
Ugelli erogatori HALOCARBON/NOVEC
HALOCARBON/NOVEC nozzles
Diffuseurs HALOCARBON/NOVEC
Identification code
Dip tube
connection
Orientamento
11.2.110.0071
1/4”
180°
11.2.110.0072
1/4”
360°
11.2.110.0073
1/2”
180°
11.2.110.0074
1/2”
360°
