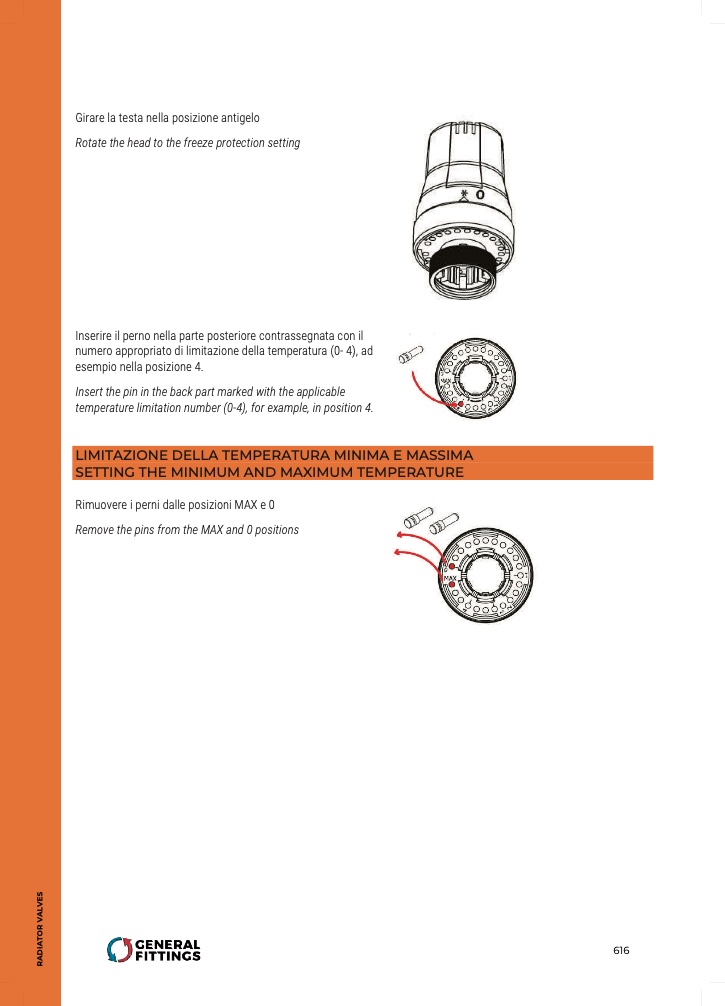

Girare la testa nella posizione antigelo

Rotate the head to the freeze protection setting

Inserire il perno nella parte posteriore contrassegnata con il

numero appropriato di limitazione della temperatura (0- 4), ad

esempio nella posizione 4.

Insert the pin in the back part marked with the applicable

temperature limitation number (0-4), for example, in position 4.

Rimuovere i perni dalle posizioni MAX e 0

Remove the pins from the MAX and 0 positions

LIMITAZIONE DELLA TEMPERATURA MINIMA E MASSIMA

SETTING THE MINIMUM AND MAXIMUM TEMPERATURE
