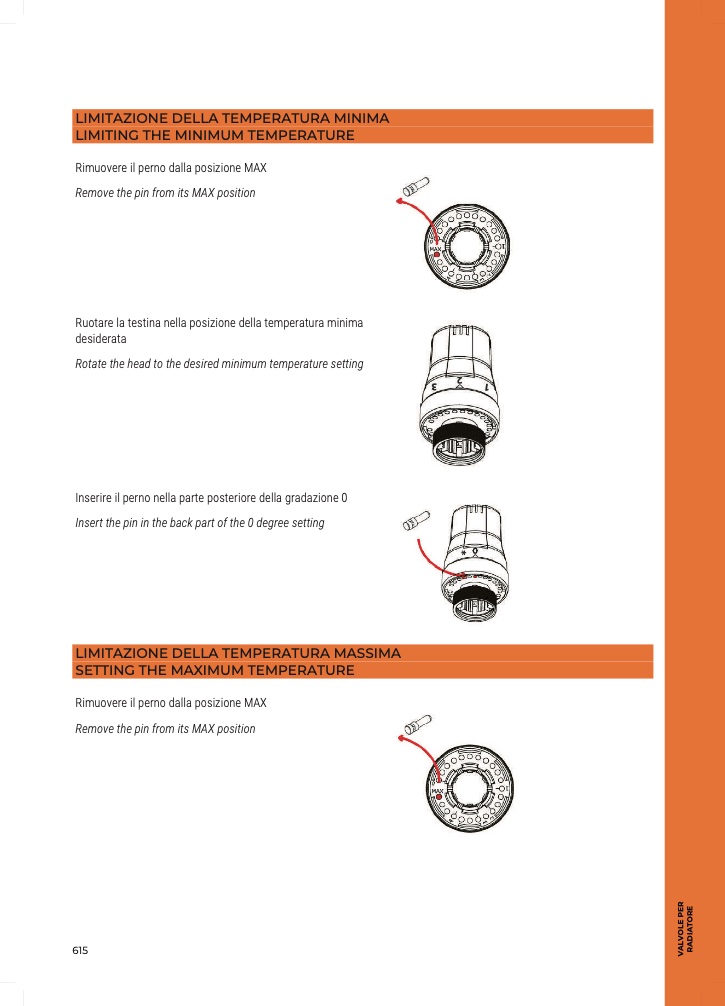

LIMITAZIONE DELLA TEMPERATURA MINIMA

LIMITING THE MINIMUM TEMPERATURE

Rimuovere il perno dalla posizione MAX

Remove the pin from its MAX position

Ruotare la testina nella posizione della temperatura minima

desiderata

Rotate the head to the desired minimum temperature setting

Inserire il perno nella parte posteriore della gradazione 0

Insert the pin in the back part of the 0 degree setting

LIMITAZIONE DELLA TEMPERATURA MASSIMA

SETTING THE MAXIMUM TEMPERATURE

Rimuovere il perno dalla posizione MAX

Remove the pin from its MAX position

615
