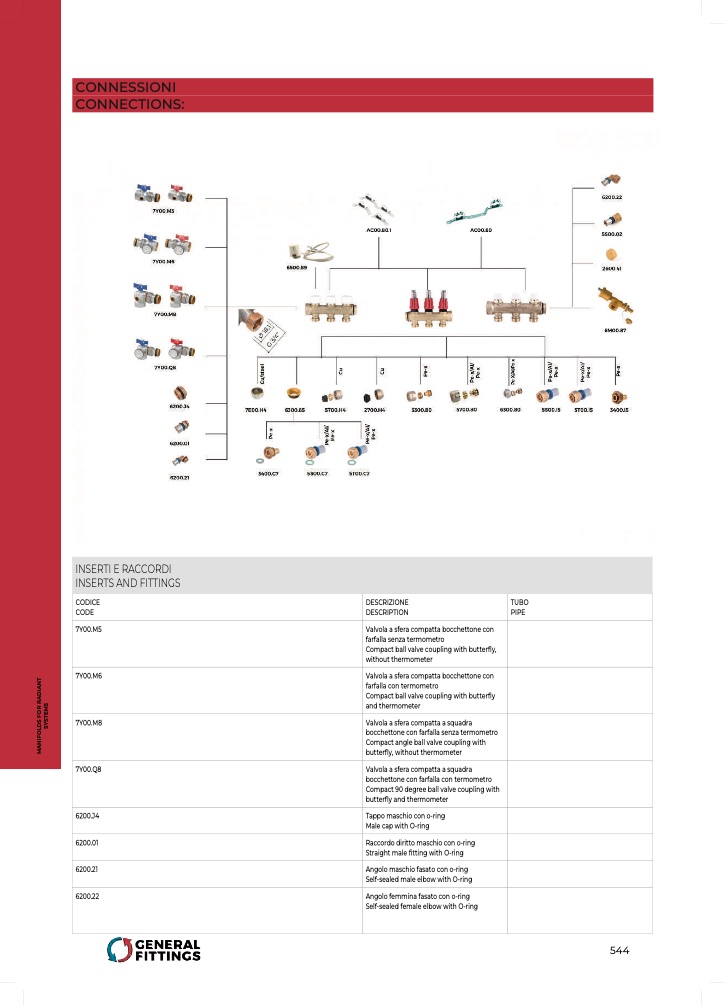

CONNESSIONI

CONNECTIONS:

INSERTI E RACCORDI

INSERTS AND

FITTINGS

CODICE

DESCRIZIONE

TUBO

CODE

DESCRIPTION

PIPE

7Y00.M5

Valvola a sfera compatta bocchettone con

farfalla senza termometro

Compact ball valve coupling with butterfly,

without thermometer

7Y00.M6

Valvola a sfera compatta bocchettone con

farfalla con termometro

Compact ball valve coupling with butterfly

and thermometer

7Y00.M8

Valvola a sfera compatta a squadra

bocchettone con farfalla senza termometro

Compact angle ball valve coupling with

butterfly, without thermometer

7Y00.Q8

Valvola a sfera compatta a squadra

bocchettone con farfalla con termometro

Compact 90 degree ball valve coupling with

butterfly and thermometer

6200.J4

Tappo maschio con o-ring

Male cap with O-ring

6200.01

Raccordo diritto maschio con o-ring

Straight male fitting with O-ring

6200.21

Angolo maschio fasato con o-ring

Self-sealed male elbow

with O-ring

6200.22

Angolo femmina fasato con o-ring

Self-sealed female elbow

with O-ring

544
