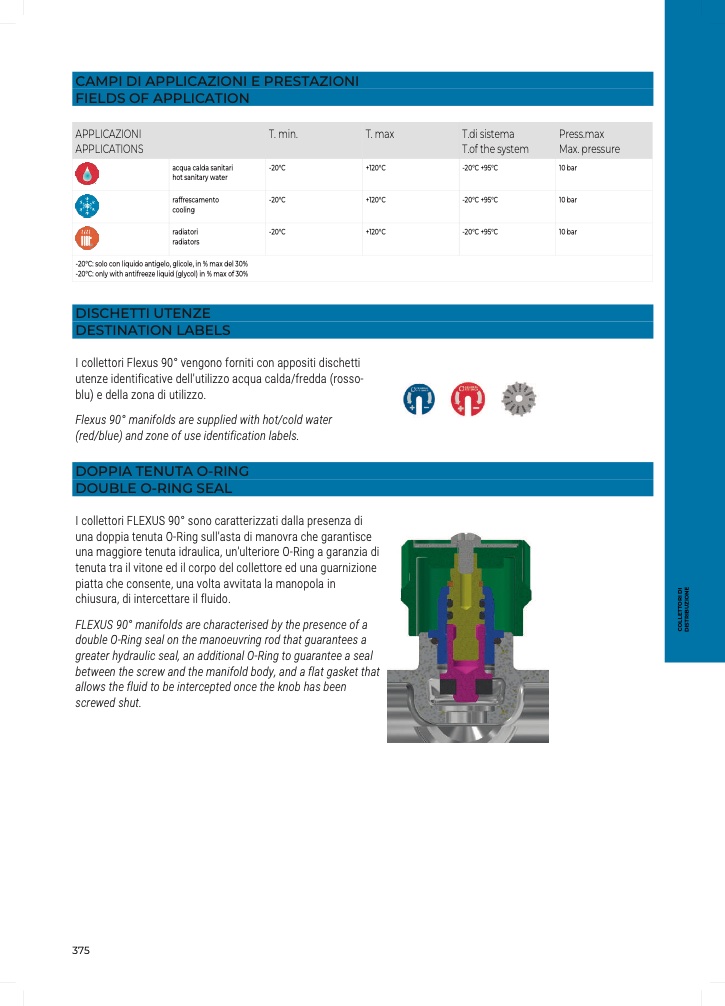

CAMPI DI APPLICAZIONI E PRESTAZIONI

FIELDS OF APPLICATION

APPLICAZIONI

APPLICATIONS

T. min.

T. max

T.di sistema

T.of the system

Press.max

Max. pressure

acqua calda sanitari

hot sanitary water

-20°C

+120°C

-20°C +95°C

10 bar

raffrescamento

cooling

-20°C

+120°C

-20°C +95°C

10 bar

radiatori

radiators

-20°C

+120°C

-20°C +95°C

10 bar

-20°C: solo con liquido antigelo, glicole, in %

max del 30%

-20°C: only with antifreeze liquid (glycol) in %

max of 30%

DISCHETTI UTENZE

DESTINATION LABELS

I collettori Flexus 90° vengono forniti con appositi dischetti

utenze identificative dell'utilizzo acqua calda/fredda (rosso-

blu) e della zona di utilizzo.

Flexus 90° manifolds are supplied with hot/cold water

(red/blue) and zone of use identification labels.

I collettori FLEXUS 90° sono caratterizzati dalla presenza di

una doppia tenuta O-Ring sull'asta di manovra che garantisce

una maggiore tenuta idraulica, un'ulteriore O-Ring a garanzia di

tenuta tra il vitone ed il corpo del collettore ed una guarnizione

piatta che consente, una volta avvitata la manopola in

chiusura, di intercettare il fluido.

FLEXUS 90° manifolds are characterised by the presence of a

double O-Ring seal on the manoeuvring rod that guarantees a

greater hydraulic seal, an additional O-Ring to guarantee a seal

between the screw and the manifold body, and a flat gasket that

allows the fluid to be intercepted once the knob has been

screwed shut.

DOPPIA TENUTA O-RING

DOUBLE O-RING SEAL
