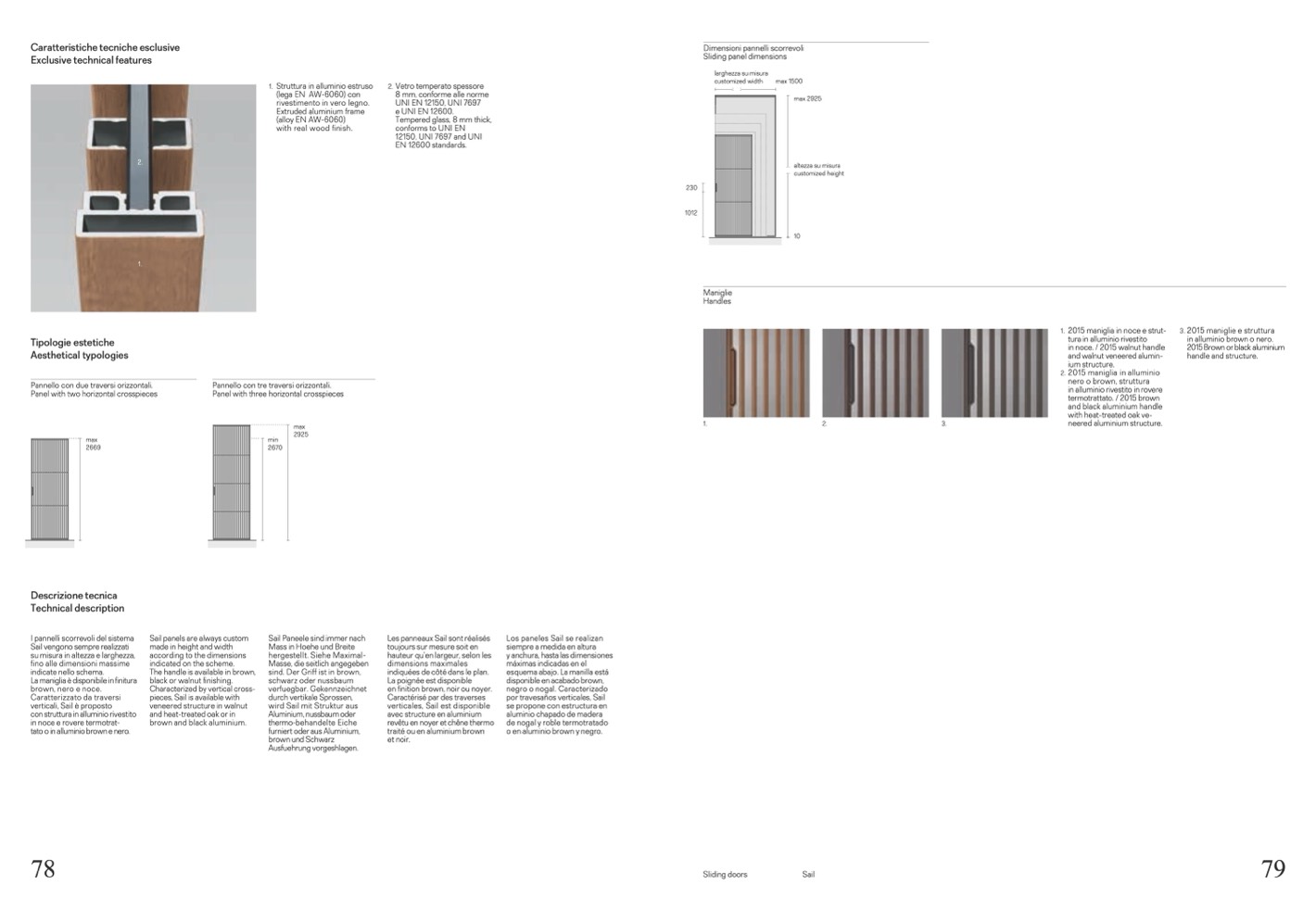

Caratteristiche tecniche esclusive
Exclusive technical features
Dimensioni pannelli scorrevoli
Sliding panel dimensions
min
max
2670
2669
max
2925
1. Struttura in alluminio estruso
(lega EN AW-6060) con
rivestimento in vero legno.
Extruded aluminium frame
(alloy EN AW-6060)
with real wood finish.
2. Vetro temperato spessore
8 mm, conforme alle norme
UNI EN 12150, UNI 7697
e UNI EN 12600.
Tempered glass, 8 mm thick,
conforms to UNI EN
12150, UNI 7697 and UNI
EN 12600 standards.
larghezza su misura
customized width
max 1500
max 2925
altezza su misura
customized height
2.
1.
230
1012
10
Tipologie estetiche
Aesthetical typologies
Pannello con due traversi orizzontali.
Panel with two horizontal crosspieces
max
2669
Maniglie
Handles
1.
1.
2.
2015manigliainnoceestrut-
tura in alluminio rivestito
in noce. / 2015 walnut handle
and walnut veneered alumin-
ium structure.
2015 maniglia in alluminio
nero o brown, struttura
in alluminio rivestito in rovere
termotrattato. / 2015 brown
and black aluminium handle
with heat-treated oak ve-
neered aluminium structure.
3.2015maniglieestruttura
in alluminio brown o nero.
2015 Brown or black aluminium
handle and structure.
Pannello con tre traversi orizzontali.
Panel with three horizontal crosspieces
max
min
2925
2670
max
min
2925
2670
2.
3.
max
2669
Descrizione tecnica
Technical description
max
2669
I pannelli scorrevoli del sistema
Sail vengono sempre realizzati
su misura in altezza e larghezza,
fino alle dimensioni massime
indicate nello schema.
La maniglia è disponibile in finitura
brown, nero e noce.
Caratterizzato da traversi
verticali, Sail è proposto
con struttura in alluminio rivestito
in noce e rovere termotrat-
tato o in alluminio brown e nero.
max
2669
min
2670
max
2925
min
2670
max
2925
Les panneaux Sail sont réalisés
toujours sur mesure soit en
hauteur qu’en largeur, selon les
dimensions maximales
indiquées de côté dans le plan.
La poignée est disponible
en finition brown, noir ou noyer.
Caractérisé par des traverses
verticales, Sail est disponible
avec structure en aluminium
revêtu en noyer et chêne thermo
traité ou en aluminium brown
et noir.
78
Sliding doors
Sail
79
Sail panels are always custom
made in height and width
according to the dimensions
indicated on the scheme.
The handle is available in brown,
black or walnut finishing.
Characterized by vertical cross-
pieces, Sail is available with
veneered structure in walnut
and heat-treated oak or in
brown and black aluminium.
Sail Paneele sind immer nach
Mass in Hoehe und Breite
hergestellt. Siehe Maximal-
Masse, die seitlich angegeben
sind. Der Griff ist in brown,
schwarz oder nussbaum
verfuegbar. Gekennzeichnet
durch vertikale Sprossen,
wird Sail mit Struktur aus
Aluminium, nussbaum oder
thermo-behandelte Eiche
furniert oder aus Aluminium,
brown und Schwarz
Ausfuehrung vorgeshlagen.
Los paneles Sail se realizan
siempre a medida en altura
y anchura, hasta las dimensiones
máximas indicadas en el
esquema abajo. La manilla está
disponible en acabado brown,
negro o nogal. Caracterizado
por travesaños verticales, Sail
se propone con estructura en
aluminio chapado de madera
de nogal y roble termotratado
o en aluminio brown y negro.
