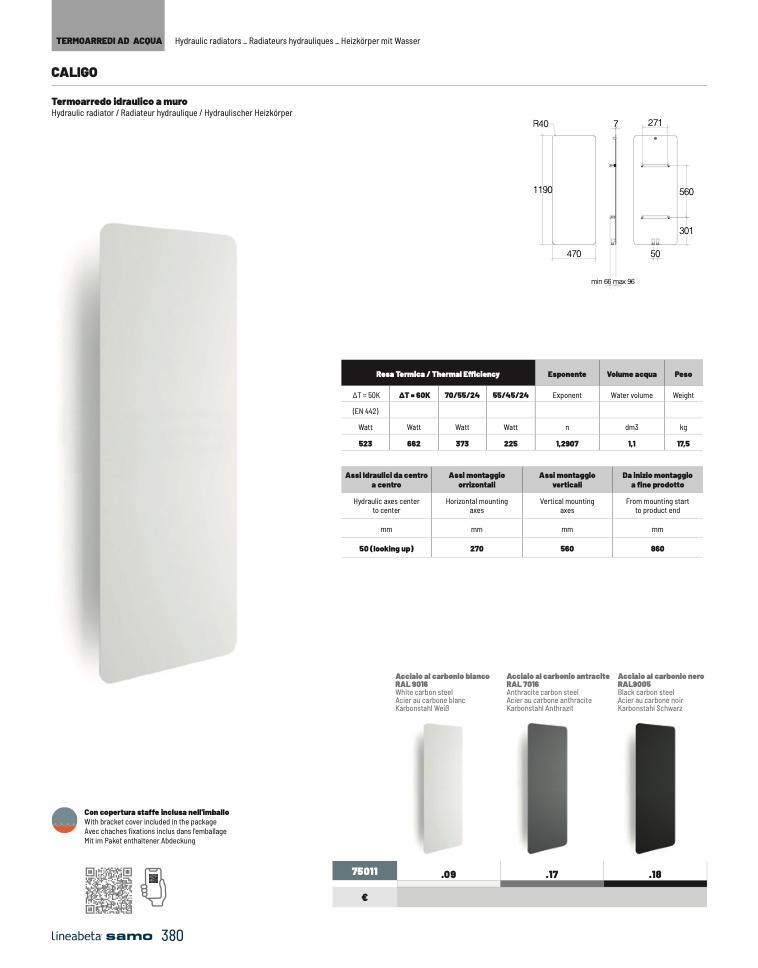

CALIGO

Termoarredo idraulico a muro

Hydraulic radiator / Radiateur hydraulique / Hydraulischer Heizkörper

Con copertura staffe inclusa nell'imballo

With bracket cover included in the package

Avec chaches fixations inclus dans l'emballage

Mit im Paket enthaltener Abdeckung

∆T = 50K

(EN 442)

Watt

523

∆T = 60K

Watt

662

70/55/24

Watt

373

55/45/24

Watt

225

Exponent

n

1,2907

Vertical mounting

axes

Water volume

Weight

Hydraulic radiators _ Radiateurs hydrauliques _ Heizkörper mit Wasser

R40

1190

7

271

50

560

301

470

min 66 max 96

Resa Termica / Thermal Efficiency

Esponente

Volume acqua

Peso

Assi Idraulici da centro

a centro

Assi montaggio

orrizontali

Assi montaggio

verticali

Da inizio montaggio

a fine prodotto

Hydraulic axes center

to center

Horizontal mounting

axes

dm3

kg

1,1

17,5

From mounting start

to product end

mm

mm

mm

mm

50 (looking up)

270

Acciaio al carbonio bianco

RAL 9016

White carbon steel

Acier au carbone blanc

Karbonstahl Weiß

.09

560

Acciaio al carbonio antracite

RAL 7016

Anthracite carbon steel

Acier au carbone anthracite

Karbonstahl Anthrazit

.17

860

Acciaio al carbonio nero

RAL9005

Black carbon steel

Acier au carbone noir

Karbonstahl Schwarz

.18

75011

samo 380

€

TERMOARREDI AD ACQUA
