Specification

Shower heads _ Pommes de douche _ Kopfbrause

SUPIONI

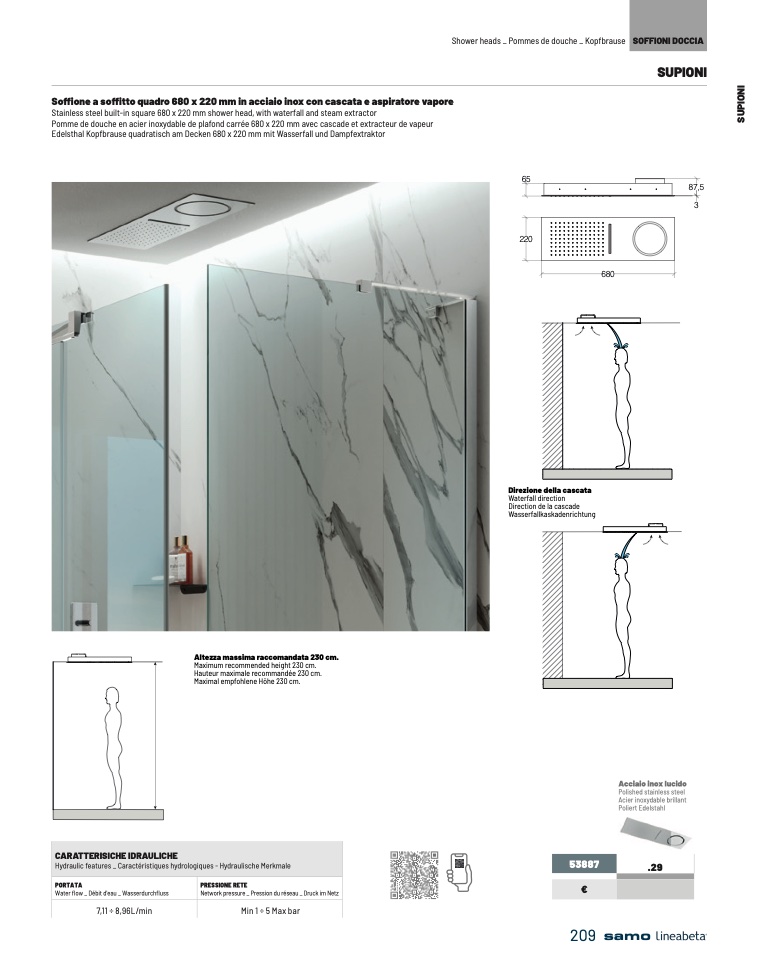

Soffione a soffitto quadro 680 x 220 mm in acciaio inox con cascata e aspiratore vapore

Stainless steel built-in square 680 x 220 mm shower head, with waterfall and steam extractor

Pomme de douche en acier inoxydable de plafond carrée 680 x 220 mm avec cascade et extracteur de vapeur

Edelsthal Kopfbrause quadratisch am Decken 680 x 220 mm mit Wasserfall und Dampfextraktor

Specification

65

220

87,5

3

Installation Locations

Installation Locations

It is not recommended that Exhaust Vents be installed in

ceiling above 2.4m, as it can limit the effectiveness of the

extraction of moisture and steam.

It is not recommended that Exhaust Vents be installed in

ceiling above 2.4m, as it can limit the effectiveness of the

extraction of moisture and steam.

680

Waterfall Cascade Direction

Waterfall Cascade Direction

Specification

Installation Locations

It is not recommended that Exhaust Vents be installed in

ceiling above 2.4m, as it can limit the effectiveness of the

extraction of moisture and steam.

Recommended

Max: 2300mm

PORTATA

Water flow _ Débit d'eau _ Wasserdurchfluss

Recommended

Max: 2300mm

Recommended

Max: 2300mm

CARATTERISICHE IDRAULICHE

Hydraulic features _ Caractéristiques hydrologiques - Hydraulische Merkmale

7,11 ÷ 8,96L/min

Min 1 ÷ 5 Max bar

Waterfall Cascade Direction

Direzione della cascata

Waterfall direction

Direction de la cascade

Wasserfallkaskadenrichtung

Altezza massima raccomandata 230 cm.

Maximum recommended height 230 cm.

Hauteur maximale recommandée 230 cm.

Maximal empfohlene Höhe 230 cm.

53887

€

209 samo

Acciaio inox lucido

Polished stainless steel

Acier inoxydable brillant

Poliert Edelstahl

PRESSIONE RETE

Network pressure _ Pression du réseau _ Druck im Netz

.29

SOFFIONI DOCCIA

S

U

P

I

O

N

I
