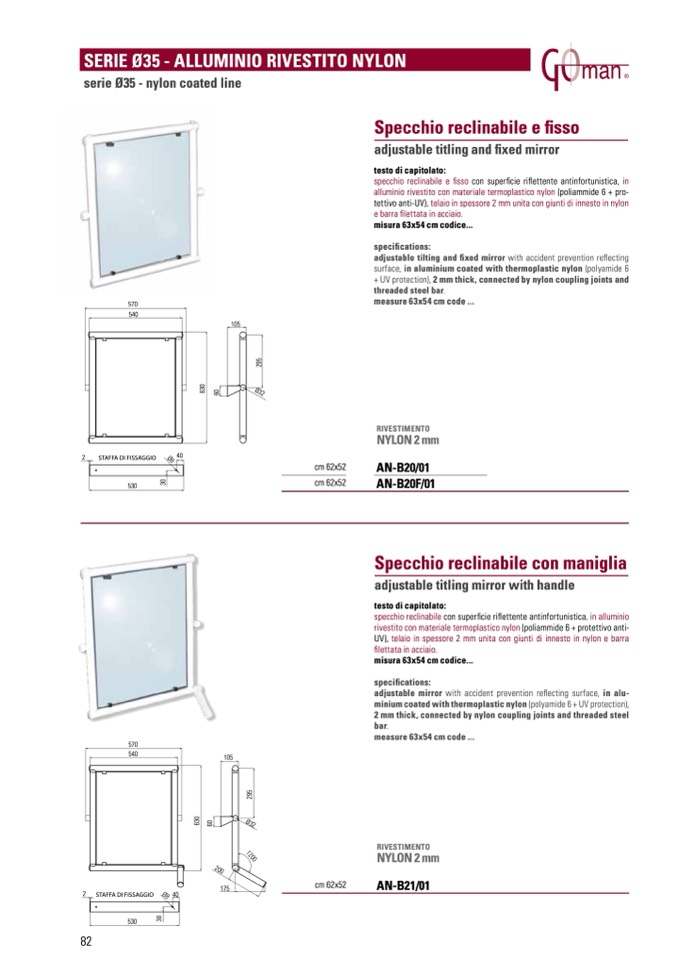

SERIE Ø35 - ALLUMINIO RIVESTITO NYLON

serie Ø35 - nylon coated line

570

Specchio reclinabile e fisso

adjustable titling and fixed mirror

testo di capitolato:

specchio reclinabile e fisso con superficie riflettente antinfortunistica, in

alluminio rivestito con materiale termoplastico nylon (poliammide 6 + pro-

tettivo anti-UV), telaio in spessore 2 mm unita con giunti di innesto in nylon

e barra filettata in acciaio.

misura 63x54 cm codice...

specifications:

adjustable tilting and fixed mirror with accident prevention reflecting

surface, in aluminium coated with thermoplastic nylon (polyamide 6

+ UV protection), 2 mm thick, connected by nylon coupling joints and

threaded steel bar.

measure 63x54 cm code ...

RIVESTIMENTO

NYLON 2 mm

AN-B20/01

AN-B20F/01

Specchio reclinabile con maniglia

adjustable titling mirror with handle

testo di capitolato:

specchio reclinabile con superficie riflettente antinfortunistica, in alluminio

rivestito con materiale termoplastico nylon (poliammide 6 + protettivo anti-

UV), telaio in spessore 2 mm unita con giunti di innesto in nylon e barra

filettata in acciaio.

misura 63x54 cm codice...

specifications:

adjustable mirror with accident prevention reflecting surface, in alu-

minium coated with thermoplastic nylon (polyamide 6 + UV protection),

2 mm thick, connected by nylon coupling joints and threaded steel

bar.

measure 63x54 cm code ...

RIVESTIMENTO

NYLON 2 mm

AN-B21/01

540

105

2

STAFFA DI FISSAGGIO

40

530

cm 62x52

cm 62x52

570

540

105

2

STAFFA DI FISSAGGIO

40

175

cm 62x52

530

82

Ø

8

Ø8

Ø

3

2

Ø32

1200

200

3

0

3

0

6

3

0

6

0

6

3

0

6

0

2

9

5

2

9

5
