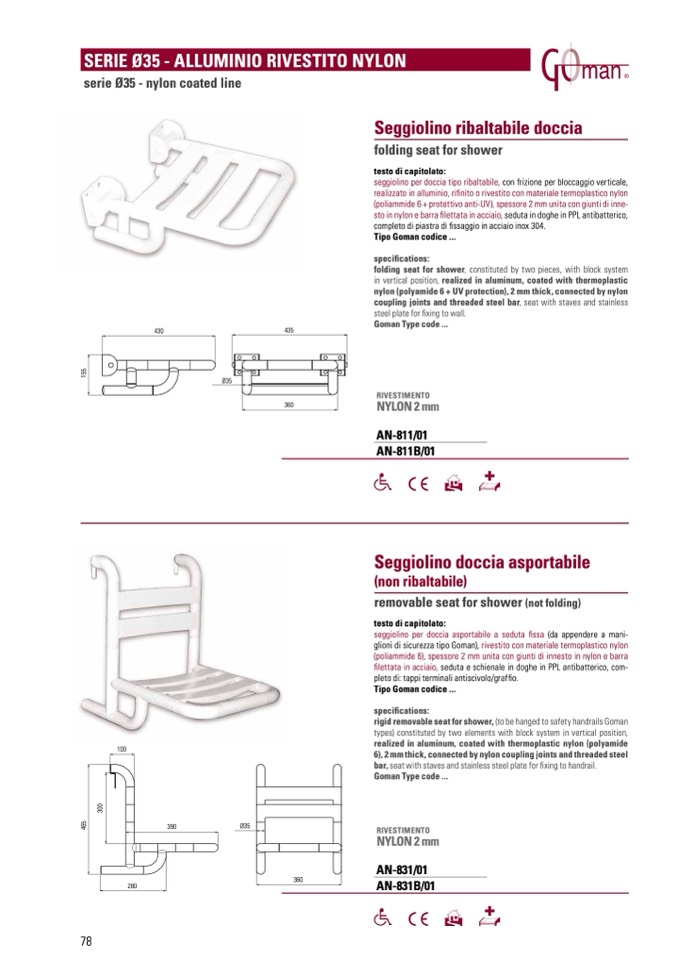

SERIE Ø35 - ALLUMINIO RIVESTITO NYLON

serie Ø35 - nylon coated line

430

435

Seggiolino ribaltabile doccia

folding seat for shower

testo di capitolato:

seggiolino per doccia tipo ribaltabile, con frizione per bloccaggio verticale,

realizzato in alluminio, rifinito o rivestito con materiale termoplastico nylon

(poliammide 6 + protettivo anti-UV), spessore 2 mm unita con giunti di inne-

sto in nylon e barra filettata in acciaio, seduta in doghe in PPL antibatterico,

completo di piastra di fissaggio in acciaio inox 304.

Tipo Goman codice ...

specifications:

folding seat for shower, constituted by two pieces, with block system

in vertical position, realized in aluminum, coated with thermoplastic

nylon (polyamide 6 + UV protection), 2 mm thick, connected by nylon

coupling joints and threaded steel bar, seat with staves and stainless

steel plate for fixing to wall.

Goman Type code ...

RIVESTIMENTO

NYLON 2 mm

AN-811/01

AN-811B/01

Seggiolino doccia asportabile

(non ribaltabile)

removable seat for shower (not folding)

testo di capitolato:

seggiolino per doccia asportabile a seduta fissa (da appendere a mani-

glioni di sicurezza tipo Goman), rivestito con materiale termoplastico nylon

(poliammide 6), spessore 2 mm unita con giunti di innesto in nylon e barra

filettata in acciaio, seduta e schienale in doghe in PPL antibatterico, com-

pleto di: tappi terminali antiscivolo/graffio.

Tipo Goman codice ...

specifications:

rigid removable seat for shower, (to be hanged to safety handrails Goman

types) constituted by two elements with block system in vertical position,

realized in aluminum, coated with thermoplastic nylon (polyamide

6), 2 mm thick, connected by nylon coupling joints and threaded steel

bar, seat with staves and stainless steel plate for fixing to handrail.

Goman Type code ...

RIVESTIMENTO

NYLON 2 mm

AN-831/01

AN-831B/01

Ø35

360

100

360

390

Ø35

280

78

4

6

5

1

5

5

3

0

0
