SERIE Ø35 - ALLUMINIO RIVESTITO NYLON

serie Ø35 - nylon coated line

cm 80

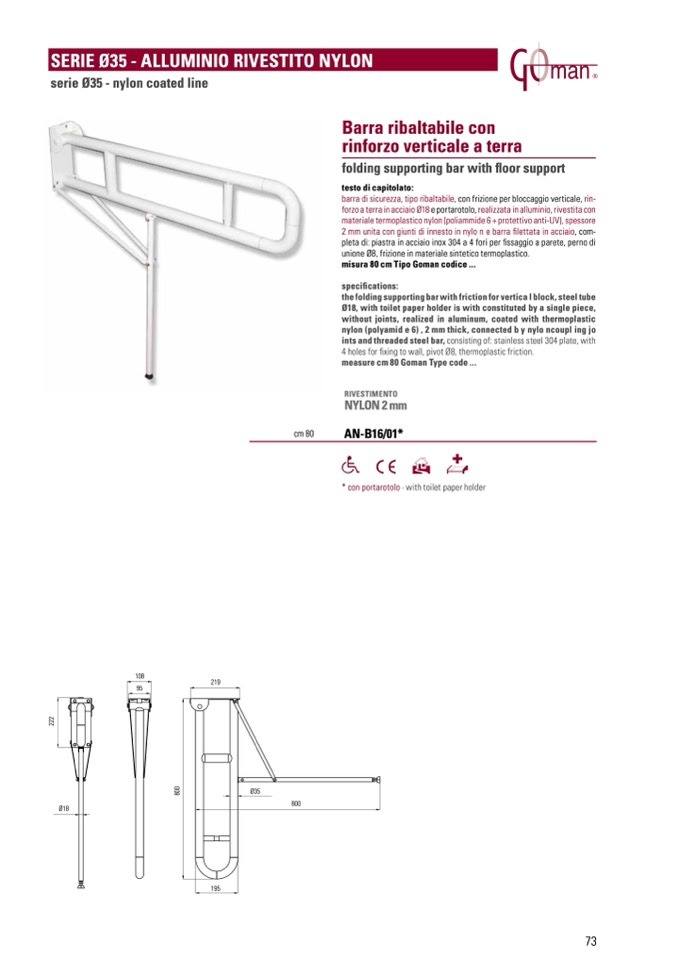

Barra ribaltabile con

rinforzo verticale a terra

folding supporting bar with floor support

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale, rin-

forzo a terra in acciaio Ø18 e portarotolo, realizzata in alluminio, rivestita con

materiale termoplastico nylon (poliammide 6 + protettivo anti-UV), spessore

2 mm unita con giunti di innesto in nylo n e barra filettata in acciaio, com-

pleta di: piastra in acciaio inox 304 a 4 fori per fissaggio a parete, perno di

unione Ø8, frizione in materiale sintetico termoplastico.

misura 80 cm Tipo Goman codice ...

specifications:

the folding supporting bar with friction for vertica l block, steel tube

Ø18, with toilet paper holder is with constituted by a single piece,

without joints, realized in aluminum, coated with thermoplastic

nylon (polyamid e 6) , 2 mm thick, connected b y nylo ncoupl ing jo

ints and threaded steel bar, consisting of: stainless steel 304 plate, with

4 holes for fixing to wall, pivot Ø8, thermoplastic friction.

measure cm 80 Goman Type code ...

RIVESTIMENTO

NYLON 2 mm

AN-B16/01*

* con portarotolo · with toilet paper holder

108

95

219

Ø35

800

Ø18

195

73

8

0

0

2

2

2
