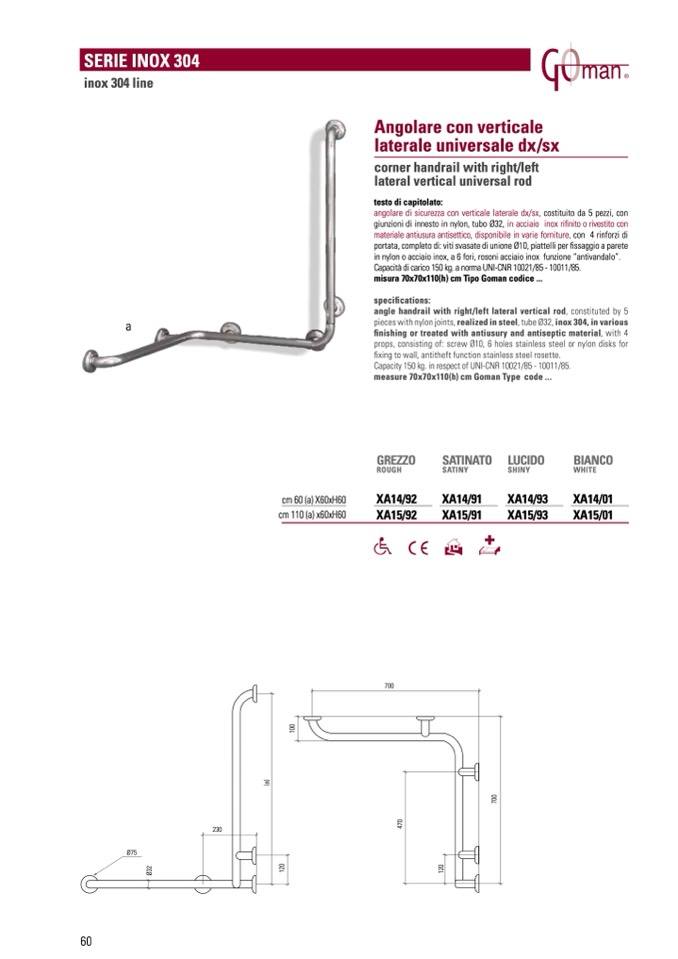

testo di capitolato:
angolare di sicurezza con verticale laterale dx/sx, costituito da 5 pezzi, con
giunzioni di innesto in nylon, tubo Ø32, in acciaio inox rifinito o rivestito con
materiale antiusura antisettico, disponibile in varie forniture, con 4 rinforzi di
portata, completo di: viti svasate di unione Ø10, piattelli per fissaggio a parete
in nylon o acciaio inox, a 6 fori, rosoni acciaio inox funzione “antivandalo”.
Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.
misura 70x70x110(h) cm Tipo Goman codice ...
specifications:
angle handrail with right/left lateral vertical rod, constituted by 5
pieces with nylon joints, realized in steel, tube Ø32, inox 304, in various
finishing or treated with antiusury and antiseptic material, with 4
props, consisting of: screw Ø10, 6 holes stainless steel or nylon disks for
fixing to wall, antitheft function stainless steel rosette.
Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.
measure 70x70x110(h) cm Goman Type code ...
cm 60 (a) X60xH60
cm 110 (a) x60xH60
ROUGH
SATINY
SHINY
WHITE
700
230
Ø75
Ø
3
2
1
2
0
1
2
0
4
7
0
7
0
0
(
a
)
1
0
0
