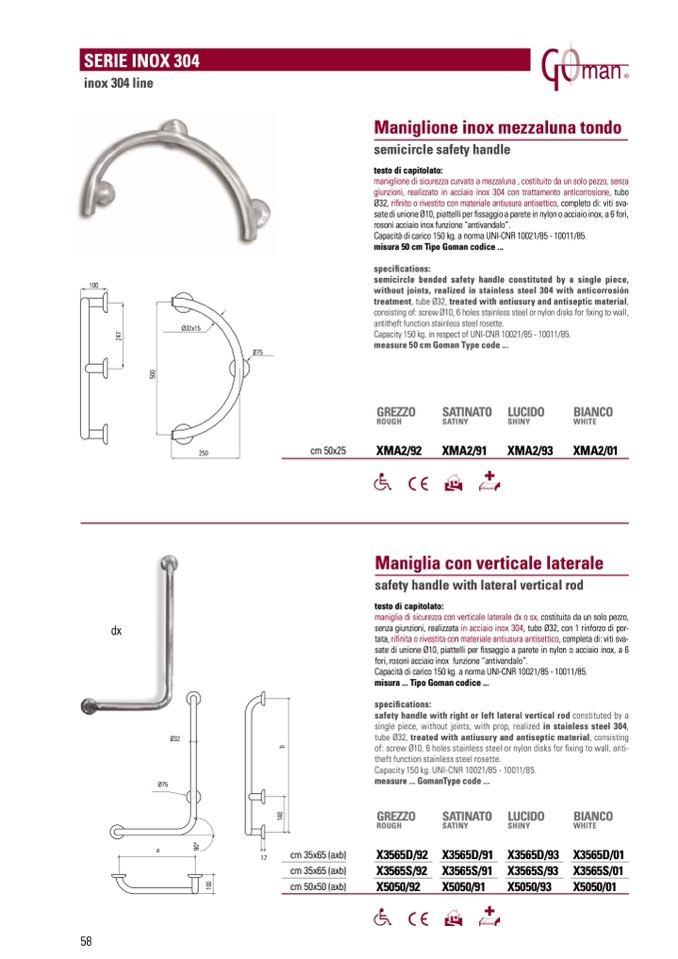

SERIE INOX 304

inox 304 line

100

Maniglione inox mezzaluna tondo

semicircle safety handle

testo di capitolato:

maniglione di sicurezza curvato a mezzaluna , costituito da un solo pezzo, senza

giunzioni, realizzato in acciaio inox 304 con trattamento anticorrosione, tubo

Ø32, rifinito o rivestito con materiale antiusura antisettico, completo di: viti sva-

sate di unione Ø10, piattelli per fissaggio a parete in nylon o acciaio inox, a 6 fori,

rosoni acciaio inox funzione “antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 50 cm Tipo Goman codice ...

specifications:

semicircle bended safety handle constituted by a single piece,

without joints, realized in stainless steel 304 with anticorrosión

treatment, tube Ø32, treated with antiusury and antiseptic material,

consisting of: screw Ø10, 6 holes stainless steel or nylon disks for fixing to wall,

antitheft function stainless steel rosette.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 50 cm Goman Type code ...

Ø32x15

250

Ø75

cm 50x25

GREZZO

SATINATO

ROUGH

SATINY

XMA2/92

XMA2/91

LUCIDO

BIANCO

SHINY

WHITE

XMA2/93

XMA2/01

dx

Maniglia con verticale laterale

safety handle with lateral vertical rod

testo di capitolato:

maniglia di sicurezza con verticale laterale dx o sx, costituita da un solo pezzo,

senza giunzioni, realizzata in acciaio inox 304, tubo Ø32, con 1 rinforzo di por-

tata, rifinita o rivestita con materiale antiusura antisettico, completa di: viti sva-

sate di unione Ø10, piattelli per fissaggio a parete in nylon o acciaio inox, a 6

fori, rosoni acciaio inox funzione “antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura ... Tipo Goman codice ...

specifications:

safety handle with right or left lateral vertical rod constituted by a

single piece, without joints, with prop, realized in stainless steel 304,

tube Ø32, treated with antiusury and antiseptic material, consisting

of: screw Ø10, 6 holes stainless steel or nylon disks for fixing to wall, anti-

theft function stainless steel rosette.

Capacity 150 kg. UNI-CNR 10021/85 - 10011/85.

measure ... GomanType code ...

Ø32

Ø75

a

17

cm 35x65 (axb)

cm 35x65 (axb)

cm 50x50 (axb)

GREZZO

ROUGH

X3565D/92

X3565S/92

X5050/92

SATINATO

SATINY

X3565D/91

X3565S/91

X5050/91

LUCIDO

SHINY

X3565D/93

X3565S/93

X5050/93

BIANCO

WHITE

X3565D/01

X3565S/01

X5050/01

58

9

0

°

1

0

0

1

4

0

b

5

0

0

2

4

7
