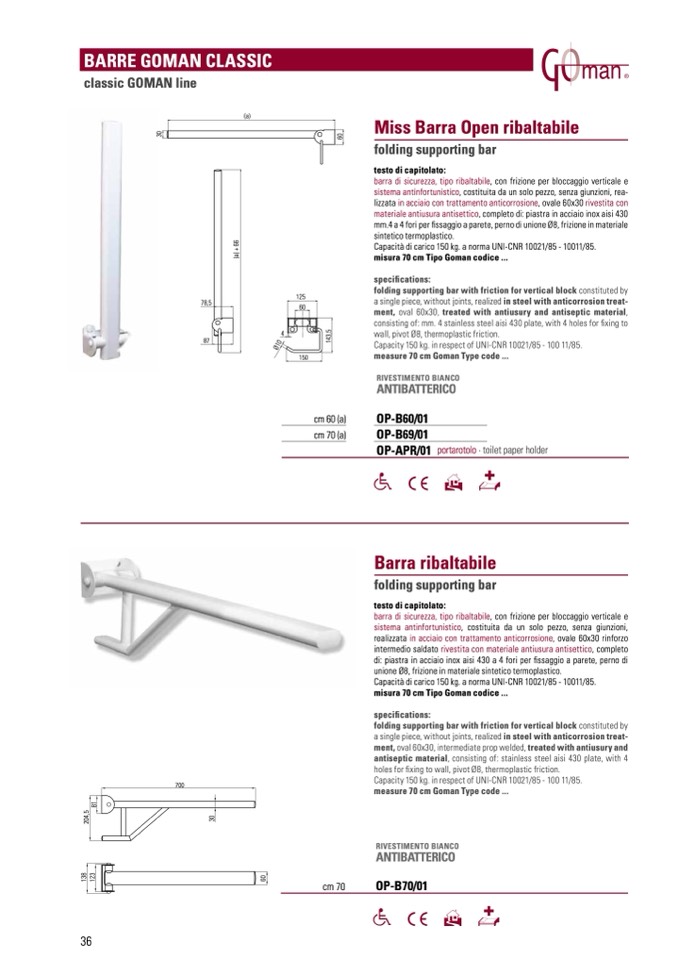

BARRE GOMAN CLASSIC

classic GOMAN line

(a)

Miss Barra Open ribaltabile

folding supporting bar

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale e

sistema antinfortunistico, costituita da un solo pezzo, senza giunzioni, rea-

lizzata in acciaio con trattamento anticorrosione, ovale 60x30 rivestita con

materiale antiusura antisettico, completo di: piastra in acciaio inox aisi 430

mm.4 a 4 fori per fissaggio a parete, perno di unione Ø8, frizione in materiale

sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 70 cm Tipo Goman codice ...

specifications:

folding supporting bar with friction for vertical block constituted by

a single piece, without joints, realized in steel with anticorrosion treat-

ment, oval 60x30, treated with antiusury and antiseptic material,

consisting of: mm. 4 stainless steel aisi 430 plate, with 4 holes for fixing to

wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 100 11/85.

measure 70 cm Goman Type code ...

RIVESTIMENTO BIANCO

ANTIBATTERICO

OP-B60/01

OP-B69/01

OP-APR/01 portarotolo·toiletpaperholder

Barra ribaltabile

folding supporting bar

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale e

sistema antinfortunistico, costituita da un solo pezzo, senza giunzioni,

realizzata in acciaio con trattamento anticorrosione, ovale 60x30 rinforzo

intermedio saldato rivestita con materiale antiusura antisettico, completo

di: piastra in acciaio inox aisi 430 a 4 fori per fissaggio a parete, perno di

unione Ø8, frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 70 cm Tipo Goman codice ...

specifications:

folding supporting bar with friction for vertical block constituted by

a single piece, without joints, realized in steel with anticorrosion treat-

ment, oval 60x30, intermediate prop welded, treated with antiusury and

antiseptic material, consisting of: stainless steel aisi 430 plate, with 4

holes for fixing to wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 100 11/85.

measure 70 cm Goman Type code ...

RIVESTIMENTO BIANCO

ANTIBATTERICO

OP-B70/01

78,5

125

cm 60 (a)

cm 70 (a)

4

60

87

150

700

cm 70

36
