MANIGLIE GOMAN CLASSIC

classic GOMAN line

c

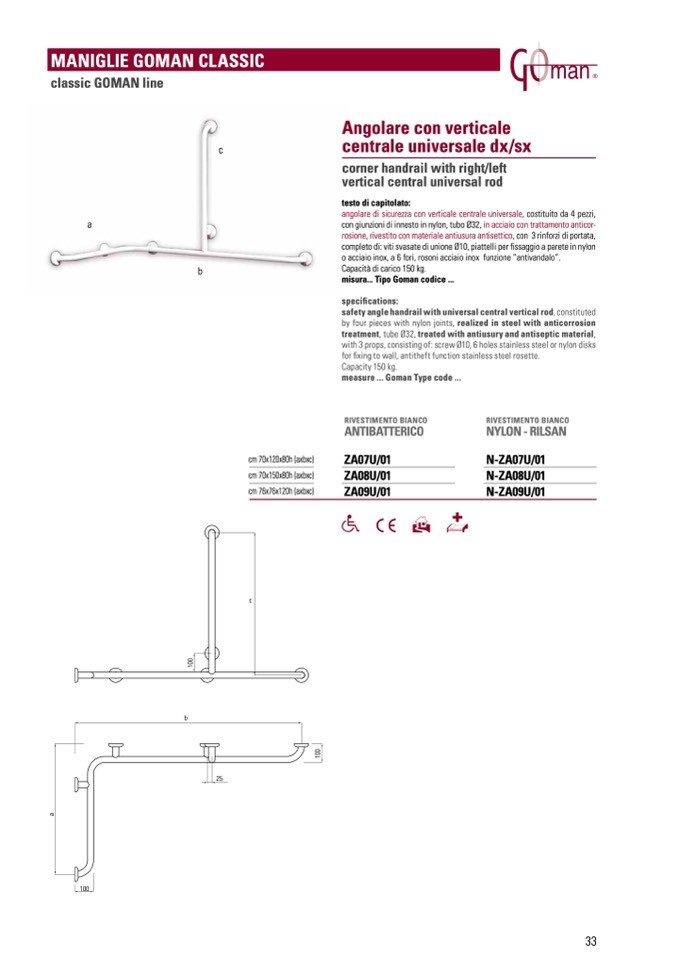

Angolare con verticale

centrale universale dx/sx

corner handrail with right/left

vertical central universal rod

testo di capitolato:

angolare di sicurezza con verticale centrale universale, costituito da 4 pezzi,

con giunzioni di innesto in nylon, tubo Ø32, in acciaio con trattamento anticor-

rosione, rivestito con materiale antiusura antisettico, con 3 rinforzi di portata,

completo di: viti svasate di unione Ø10, piattelli per fissaggio a parete in nylon

o acciaio inox, a 6 fori, rosoni acciaio inox funzione “antivandalo”.

Capacità di carico 150 kg.

misura... Tipo Goman codice ...

specifications:

safety angle handrail with universal central vertical rod, constituted

by four pieces with nylon joints, realized in steel with anticorrosion

treatment, tube Ø32, treated with antiusury and antiseptic material,

with 3 props, consisting of: screw Ø10, 6 holes stainless steel or nylon disks

for fixing to wall, antitheft function stainless steel rosette.

Capacity 150 kg.

measure ... Goman Type code ...

a

b

cm 70x120x80h (axbxc)

cm 70x150x80h (axbxc)

cm 76x76x120h (axbxc)

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZA07U/01

ZA08U/01

ZA09U/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZA07U/01

N-ZA08U/01

N-ZA09U/01

c

b

25

100

33

a

1

0

0

1

0

0
