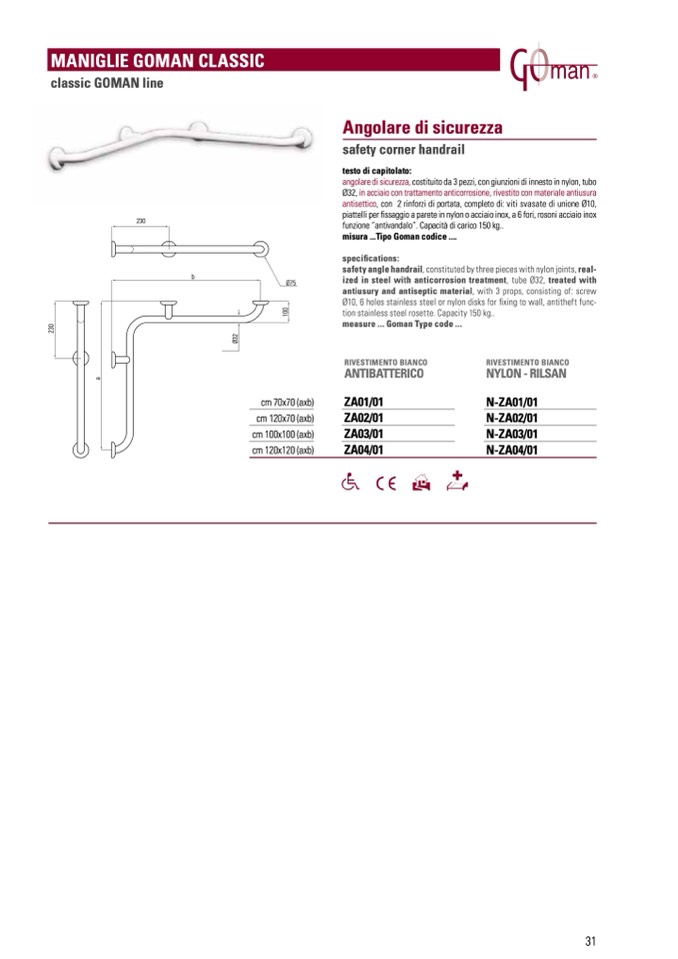

MANIGLIE GOMAN CLASSIC

classic GOMAN line

230

Angolare di sicurezza

safety corner handrail

testo di capitolato:

angolare di sicurezza, costituito da 3 pezzi, con giunzioni di innesto in nylon, tubo

Ø32, in acciaio con trattamento anticorrosione, rivestito con materiale antiusura

antisettico, con 2 rinforzi di portata, completo di: viti svasate di unione Ø10,

piattelli per fissaggio a parete in nylon o acciaio inox, a 6 fori, rosoni acciaio inox

funzione “antivandalo”. Capacità di carico 150 kg..

misura ...Tipo Goman codice ....

specifications:

safety angle handrail, constituted by three pieces with nylon joints, real-

ized in steel with anticorrosion treatment, tube Ø32, treated with

antiusury and antiseptic material, with 3 props, consisting of: screw

Ø10, 6 holes stainless steel or nylon disks for fixing to wall, antitheft func-

tion stainless steel rosette. Capacity 150 kg..

measure ... Goman Type code ...

b

Ø75

cm 70x70 (axb)

cm 120x70 (axb)

cm 100x100 (axb)

cm 120x120 (axb)

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZA01/01

ZA02/01

ZA03/01

ZA04/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZA01/01

N-ZA02/01

N-ZA03/01

N-ZA04/01

31

a

Ø

3

2

2

3

0

1

0

0
