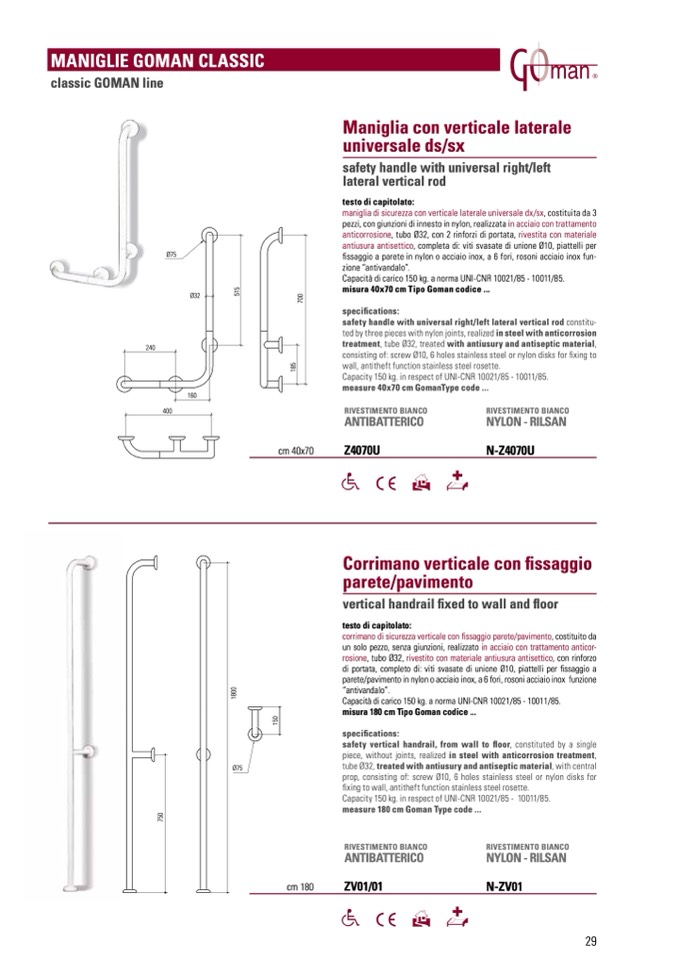

MANIGLIE GOMAN CLASSIC

classic GOMAN line

240

Ø75

Ø32

160

Maniglia con verticale laterale

universale ds/sx

safety handle with universal right/left

lateral vertical rod

testo di capitolato:

maniglia di sicurezza con verticale laterale universale dx/sx, costituita da 3

pezzi, con giunzioni di innesto in nylon, realizzata in acciaio con trattamento

anticorrosione, tubo Ø32, con 2 rinforzi di portata, rivestita con materiale

antiusura antisettico, completa di: viti svasate di unione Ø10, piattelli per

fissaggio a parete in nylon o acciaio inox, a 6 fori, rosoni acciaio inox fun-

zione “antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 40x70 cm Tipo Goman codice ...

specifications:

safety handle with universal right/left lateral vertical rod constitu-

ted by three pieces with nylon joints, realized in steel with anticorrosion

treatment, tube Ø32, treated with antiusury and antiseptic material,

consisting of: screw Ø10, 6 holes stainless steel or nylon disks for fixing to

wall, antitheft function stainless steel rosette.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 40x70 cm GomanType code ...

400

RIVESTIMENTO BIANCO

ANTIBATTERICO

Z4070U

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-Z4070U

cm 40x70

Ø75

Corrimano verticale con fissaggio

parete/pavimento

vertical handrail fixed to wall and floor

testo di capitolato:

corrimano di sicurezza verticale con fissaggio parete/pavimento, costituito da

un solo pezzo, senza giunzioni, realizzato in acciaio con trattamento anticor-

rosione, tubo Ø32, rivestito con materiale antiusura antisettico, con rinforzo

di portata, completo di: viti svasate di unione Ø10, piattelli per fissaggio a

parete/pavimento in nylon o acciaio inox, a 6 fori, rosoni acciaio inox funzione

“antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 180 cm Tipo Goman codice ...

specifications:

safety vertical handrail, from wall to floor, constituted by a single

piece, without joints, realized in steel with anticorrosion treatment,

tube Ø32, treated with antiusury and antiseptic material, with central

prop, consisting of: screw Ø10, 6 holes stainless steel or nylon disks for

fixing to wall, antitheft function stainless steel rosette.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 180 cm Goman Type code ...

cm 180

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZV01/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZV01
