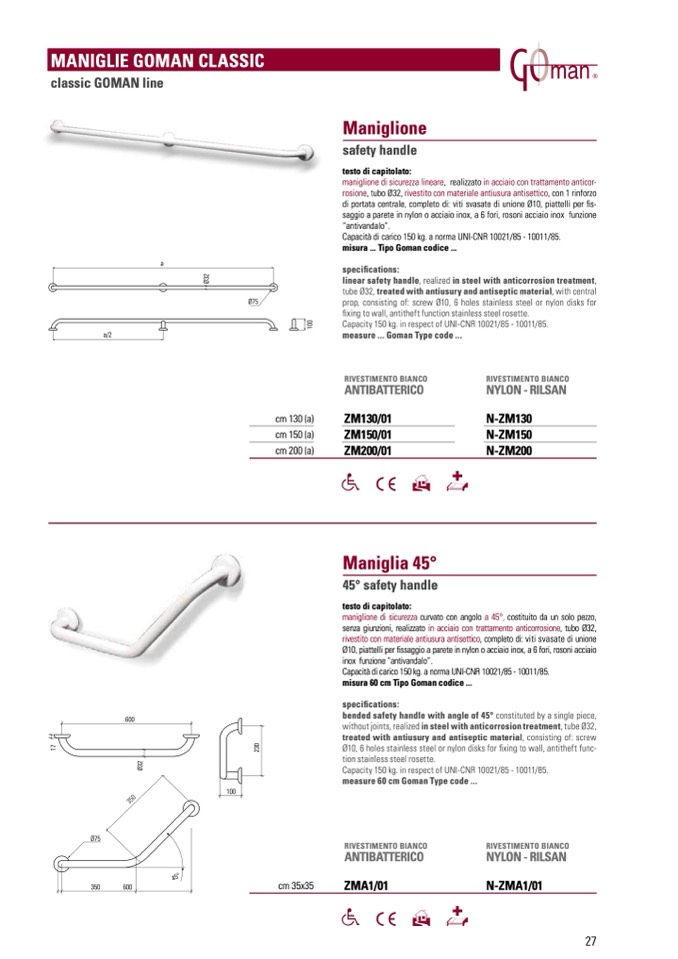

MANIGLIE GOMAN CLASSIC

classic GOMAN line

a

Maniglione

safety handle

testo di capitolato:

maniglione di sicurezza lineare, realizzato in acciaio con trattamento anticor-

rosione, tubo Ø32, rivestito con materiale antiusura antisettico, con 1 rinforzo

di portata centrale, completo di: viti svasate di unione Ø10, piattelli per fis-

saggio a parete in nylon o acciaio inox, a 6 fori, rosoni acciaio inox funzione

“antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura ... Tipo Goman codice ...

specifications:

linear safety handle, realized in steel with anticorrosion treatment,

tube Ø32, treated with antiusury and antiseptic material, with central

prop, consisting of: screw Ø10, 6 holes stainless steel or nylon disks for

fixing to wall, antitheft function stainless steel rosette.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure ... Goman Type code ...

Ø75

a/2

cm 130 (a)

cm 150 (a)

cm 200 (a)

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZM130/01

ZM150/01

ZM200/01

Maniglia 45°

45° safety handle

testo di capitolato:

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZM130

N-ZM150

N-ZM200

600

maniglione di sicurezza curvato con angolo a 45°, costituito da un solo pezzo,

senza giunzioni, realizzato in acciaio con trattamento anticorrosione, tubo Ø32,

rivestito con materiale antiusura antisettico, completo di: viti svasate di unione

Ø10, piattelli per fissaggio a parete in nylon o acciaio inox, a 6 fori, rosoni acciaio

inox funzione “antivandalo”.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 60 cm Tipo Goman codice ...

specifications:

bended safety handle with angle of 45° constituted by a single piece,

without joints, realized in steel with anticorrosion treatment, tube Ø32,

treated with antiusury and antiseptic material, consisting of: screw

Ø10, 6 holes stainless steel or nylon disks for fixing to wall, antitheft func-

tion stainless steel rosette.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 60 cm Goman Type code ...

100

Ø75

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZMA1/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZMA1/01

350

600

cm 35x35

27

Ø

3

2

1

7

2

3

0

1

0

0

Ø

3

2

350

4

5

°
