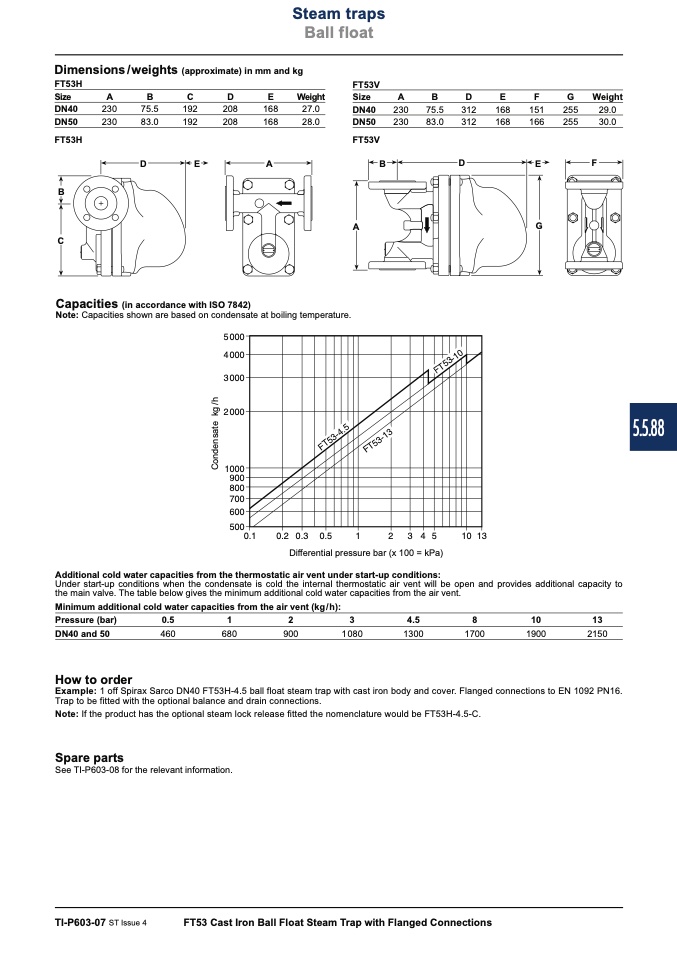

Dimensions/weights (approximate) in mm and kg

FT53H

Size

A

B

C

D

E

Weight

DN40

230

75.5

192

208

168

27.0

DN50

230

83.0

192

208

168

28.0

Steam traps

Ball float

FT53V

Size

A

B

D

E

F

G

Weight

DN40

230

75.5

312

168

151

255

29.0

DN50

230

83.0

312

168

166

255

30.0

FT53V

D

E

A

B

D

E

F

FT53H

B

C

Capacities (in accordance with ISO 7842)

Note: Capacities shown are based on condensate at boiling temperature.

�� ������

�� ������

�� ������

�� ������

��������

������

������

������

A

G

C

o

n

d

e

n

s

a

t

e

k

g

/

h

����������������

��������������

������

������

������

�����������

�

������

��

�

�

������

��������

Differential pressure bar (x 100 = kPa)

Additional cold water capacities from the thermostatic air vent under start-up conditions:

Under start-up conditions when the condensate is cold the internal thermostatic air vent will be open and provides additional capacity to

the main valve. The table below gives the minimum additional cold water capacities from the air vent.

Minimum additional cold water capacities from the air vent (kg/h):

Pressure (bar)

0.5

1

2

3

4.5

8

10

13

DN40 and 50

460

680

900

1080

1300

1700

1900

2150

How to order

Example: 1 off Spirax Sarco DN40 FT53H-4.5 ball float steam trap with cast iron body and cover. Flanged connections to EN 1092 PN16.

Trap to be fitted with the optional balance and drain connections.

Note: If the product has the optional steam lock release fitted the nomenclature would be FT53H-4.5-C.

Spare parts

See TI-P603-08 for the relevant information.

TI-P603-07 ST Issue 4

FT53 Cast Iron Ball Float Steam Trap with Flanged Connections

5.5.88
