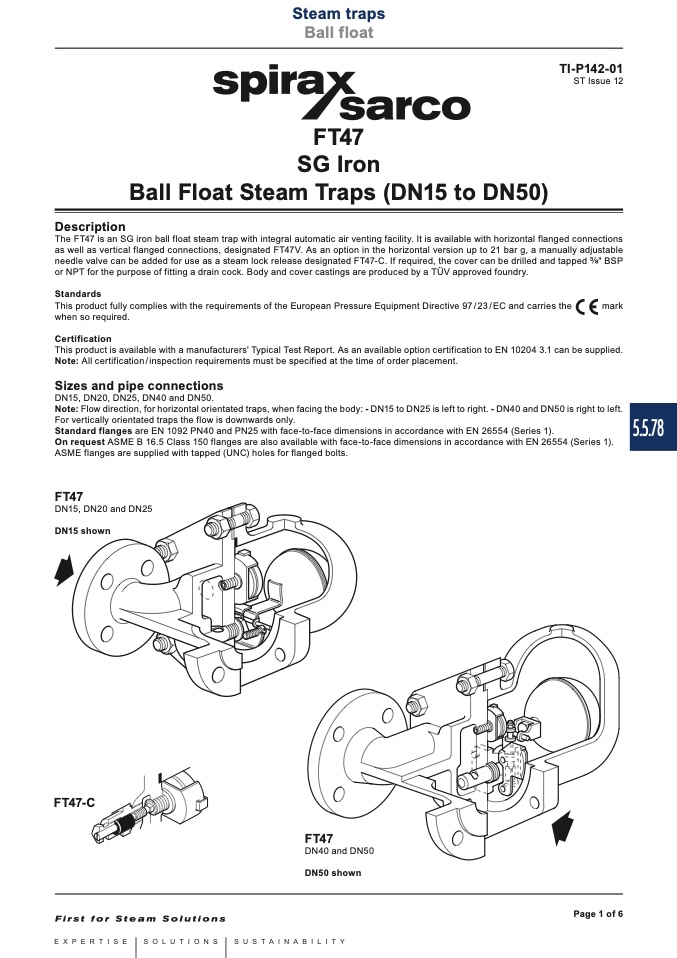

FT47

SG Iron

Ball Float Steam Traps (DN15 to DN50)

Description

Ball float

© Copyright 2016

The FT47 is an SG iron ball float steam trap with integral automatic air venting facility. It is available with horizontal flanged connections

as well as vertical flanged connections, designated FT47V. As an option in the horizontal version up to 21 bar g, a manually adjustable

needle valve can be added for use as a steam lock release designated FT47-C. If required, the cover can be drilled and tapped

or NPT for the purpose of fitting a drain cock. Body and cover castings are produced by a TÜV approved foundry.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

when so required.

" BSP

mark

Certification

Note: All certification/inspection requirements must be specified at the time of order placement.

Sizes and pipe connections

This product is available with a manufacturers' Typical Test Report. As an available option certification to EN 10204 3.1 can be supplied.

DN15, DN20, DN25, DN40 and DN50.

Note: Flow direction, for horizontal orientated traps, when facing the body: - DN15 to DN25 is left to right. - DN40 and DN50 is right to left.

For vertically orientated traps the flow is downwards only.

Standard flanges are EN 1092 PN40 and PN25 with face-to-face dimensions in accordance with EN 26554 (Series 1).

On request ASME B 16.5 Class 150 flanges are also available with face-to-face dimensions in accordance with EN 26554 (Series 1).

ASME flanges are supplied with tapped (UNC) holes for flanged bolts.

5.5.78

FT47

DN15, DN20 and DN25

DN15 shown

F T4

7- C

FT47

DN40 and DN50

DN50 shown

TI-P142-01

ST Issue 12

Page 1 of 6
