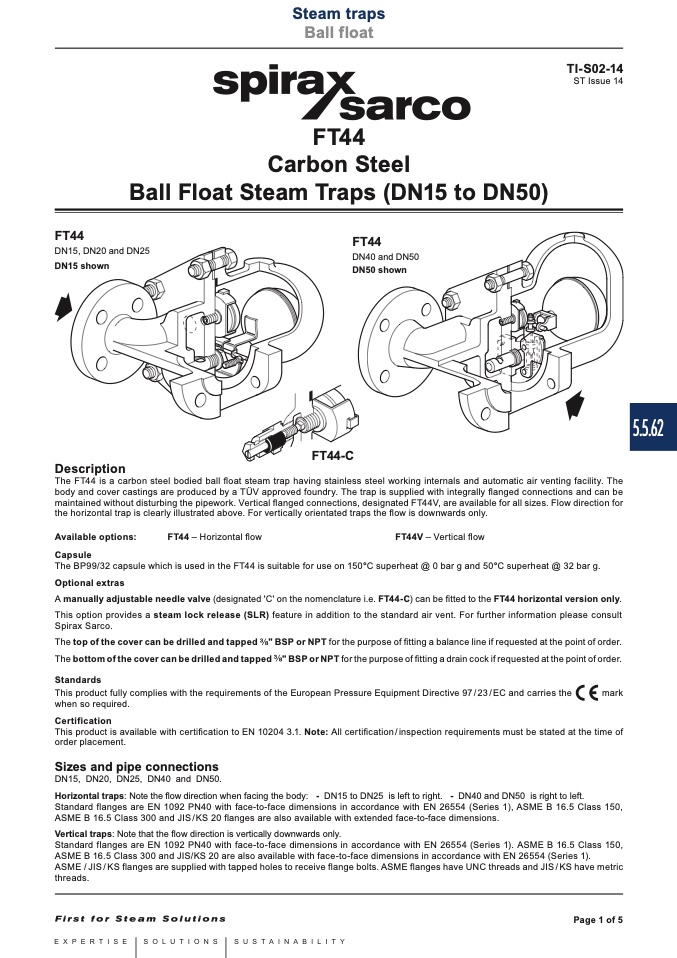

FT44

DN15, DN20 and DN25

DN15 shown

FT44

DN40 and DN50

DN50 shown

Description

FT44-C

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Ball float

© Copyright 2016

FT44

Carbon Steel

Ball Float Steam Traps (DN15 to DN50)

The FT44 is a carbon steel bodied ball float steam trap having stainless steel working internals and automatic air venting facility. The

body and cover castings are produced by a TÜV approved foundry. The trap is supplied with integrally flanged connections and can be

maintained without disturbing the pipework. Vertical

flanged connections, designated FT44V, are available for all sizes. Flow direction for

the horizontal trap is clearly illustrated above. For vertically orientated traps the flow is downwards only.

Available options:

FT44 – Horizontal flow

FT44V – Vertical flow

Capsule

The BP99/32 capsule which is used in the FT44 is suitable for use on 150°C superheat @ 0 bar g and 50°C superheat @ 32 bar g.

Optional extras

A manually adjustable needle valve (designated 'C' on the nomenclature i.e. FT44-C) can be fitted to the FT44 horizontal version only.

This option provides a steam lock release (SLR) feature in addition to the standard air vent. For further information please consult

Spirax Sarco.

The top of the cover can be drilled and tapped " BSP or NPT for the purpose of fitting a balance line if requested at the point of order.

The bottom of the cover can be drilled and tapped " BSP or NPT for the purpose of fitting a drain cock if requested at the point of order.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

mark

when so required.

Certification

This product is available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be stated at the time of

order placement.

Sizes and pipe connections

DN15, DN20, DN25, DN40 and DN50.

Horizontal traps: Note the flow direction when facing the body: - DN15 to DN25 is left to right. - DN40 and DN50 is right to left.

Standard flanges are EN 1092 PN40 with face-to-face dimensions in accordance with EN 26554 (Series 1), ASME B 16.5 Class 150,

ASME B 16.5 Class 300 and JIS/KS 20 flanges are also available with extended face-to-face dimensions.

Vertical traps: Note that the flow direction is vertically downwards only.

Standard flanges are EN 1092 PN40 with face-to-face dimensions in accordance with EN 26554 (Series 1). ASME B 16.5 Class 150,

ASME B 16.5 Class 300 and JIS/KS 20 are also available with face-to-face dimensions in accordance with EN 26554 (Series 1).

ASME / JIS / KS flanges are supplied with tapped holes to receive flange bolts. ASME flanges have UNC threads and JIS / KS have metric

threads.

TI-S02-14

ST Issue 14

Page 1 of 5

5.5.62
