Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Ball float

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-S02-22

ST Issue 9

FT43

Cast Iron

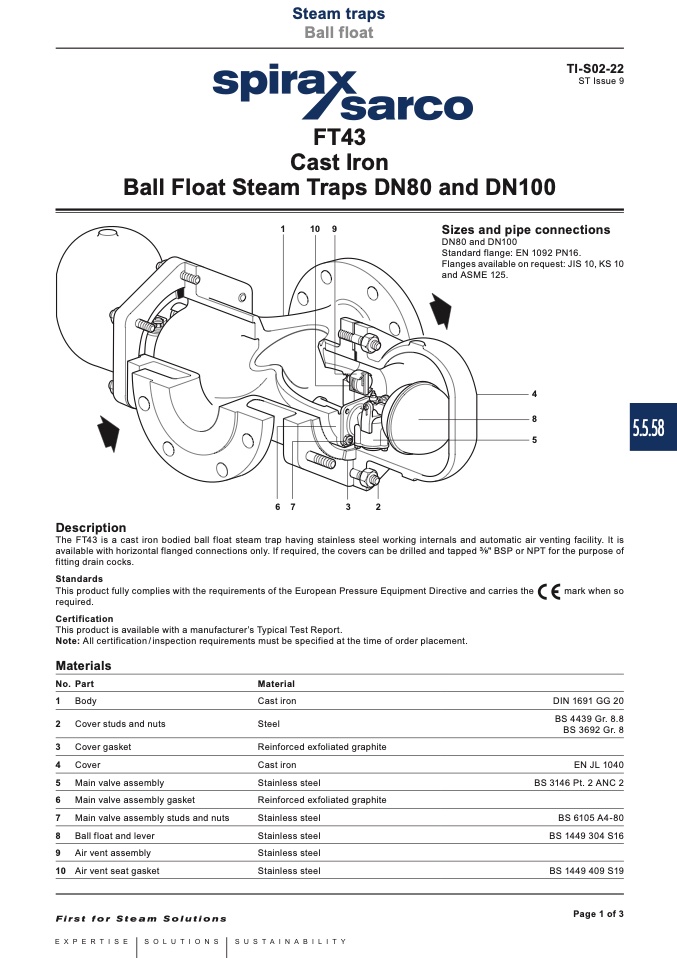

Ball Float Steam Traps DN80 and DN100

1

1

0

9

Sizes and pipe connections

DN80 and DN100

Standard flange: EN 1092 PN16.

Flanges available on request: JIS 10, KS 10

and ASME 125.

4

8

5

Description

6

7

3

2

The FT43 is a cast iron bodied ball float steam trap having stainless steel working internals and automatic air venting facility. It is

available with horizontal flanged connections only. If required, the covers can be drilled and tapped " BSP or NPT for the purpose of

fitting drain cocks.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive and carries the

required.

Certification

This product is available with a manufacturer’s Typical Test Report.

Note: All certification/inspection requirements must be specified at the time of order placement.

mark when so

DIN 1691 GG 20

BS 4439 Gr. 8.8

BS 3692 Gr. 8

EN JL 1040

BS 3146 Pt. 2 ANC 2

BS 6105 A4-80

BS 1449 304 S16

BS 1449 409 S19

Materials

No. Part

1 Body

2 Cover studs and nuts

3 Cover gasket

4 Cover

5 Main valve assembly

6 Main valve assembly gasket

7 Main valve assembly studs and nuts

8 Ball float and lever

9 Air vent assembly

10 Air vent seat gasket

Material

Cast iron

Steel

Reinforced exfoliated graphite

Cast iron

Stainless steel

Reinforced exfoliated graphite

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Page 1 of 3

5.5.58
