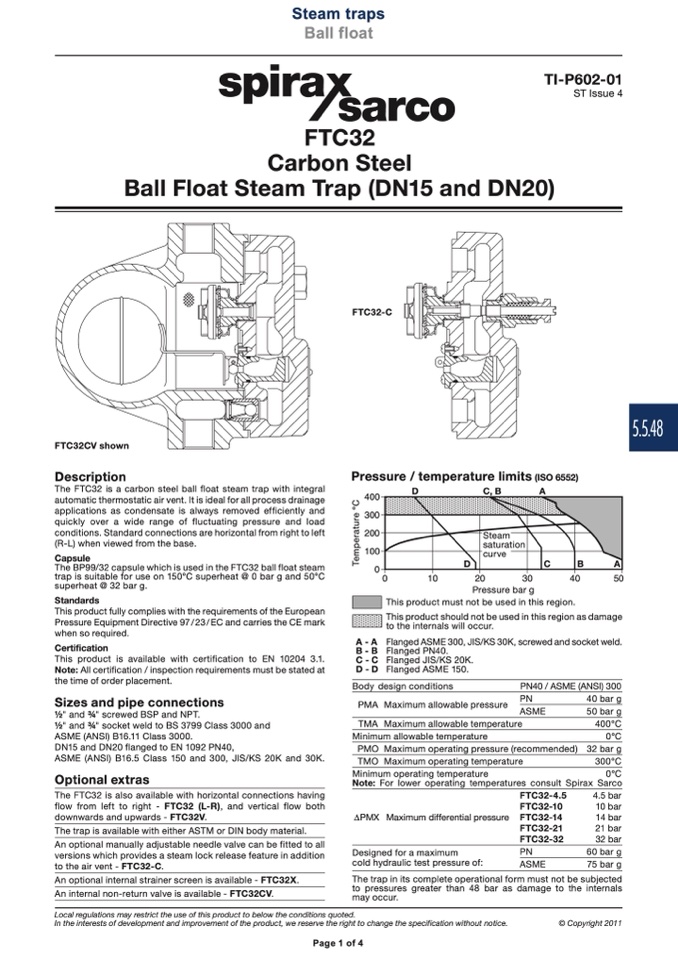

Steam traps

Ball float

Page 1 of 4

FTC32

Carbon Steel

Ball Float Steam Trap (DN15 and DN20)

FTC32CV shown

Description

The FTC32 is a carbon steel ball float steam trap with integral

automatic thermostatic air vent. It is ideal for all process drainage

applications as condensate is always removed efficiently and

quickly over a wide range of fluctuating pressure and load

conditions. Standard connections are horizontal from right to left

(R-L) when viewed from the base.

Capsule

The BP99/32 capsule which is used in the FTC32 ball float steam

trap is suitable for use on 150°C superheat @ 0 bar g and 50°C

superheat @ 32 bar g.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97 / 23 / EC and carries the CE mark

when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1⁄2" and 3⁄4" screwed BSP and NPT.

1⁄2" and 3⁄4" socket weld to BS 3799 Class 3000 and

ASME (ANSI) B16.11 Class 3000.

DN15 and DN20 flanged to EN 1092 PN40,

ASME (ANSI) B16.5 Class 150 and 300, JIS/KS 20K and 30K.

Optional extras

The FTC32 is also available with horizontal connections having

flow from left to right - FTC32 (L-R), and vertical flow both

downwards and upwards - FTC32V.

The trap is available with either ASTM or DIN body material.

An optional manually adjustable needle valve can be fitted to all

versions which provides a steam lock release feature in addition

to the air vent - FTC32-C.

An optional internal strainer screen is available - FTC32X.

An internal non-return valve is available - FTC32CV.

5.5.48

FTC32-C

Pressure / temperature limits (ISO 6552)

TI-P602-01

ST Issue 4

T

e

m

p

e

r

a

t

u

r

e

°

C

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2011

Page 1 of 4

������

������

������

������

��

A -A

B- B

C -C

D -D

D

C, B

A

Steam

saturation

D

curve

C

B

A

��

����

����

����

����

����

Pressure bar g

This product must not be used in this region.

This product should not be used in this region as damage

to the internals will occur.

Flanged ASME 300, JIS/KS 30K, screwed and socket weld.

Flanged PN40.

Flanged JIS/KS 20K.

Flanged ASME 150.

Body design conditions

PMA Maximum allowable pressure

TMA Maximumallowabletemperature

Minimum allowable temperature

PMO Maximum operating pressure (recommended)

TMO Maximum operating temperature

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

DPMX Maximum differential pressure

Designed for a maximum

cold hydraulic test pressure of:

FTC32-4.5

FTC32-10

FTC32-14

FTC32-21

FTC32-32

PN

ASME

The trap in its complete operational form must not be subjected

to pressures greater than 48 bar as damage to the internals

may occur.

PN40 / ASME (ANSI) 300

PN

ASME

40 bar g

50 bar g

400°C

0°C

32 bar g

300°C

10 bar

14 bar

21 bar

32 bar

60 bar g

75 bar g

0°C

4.5 bar
