Steam traps

Ball float

Spare parts

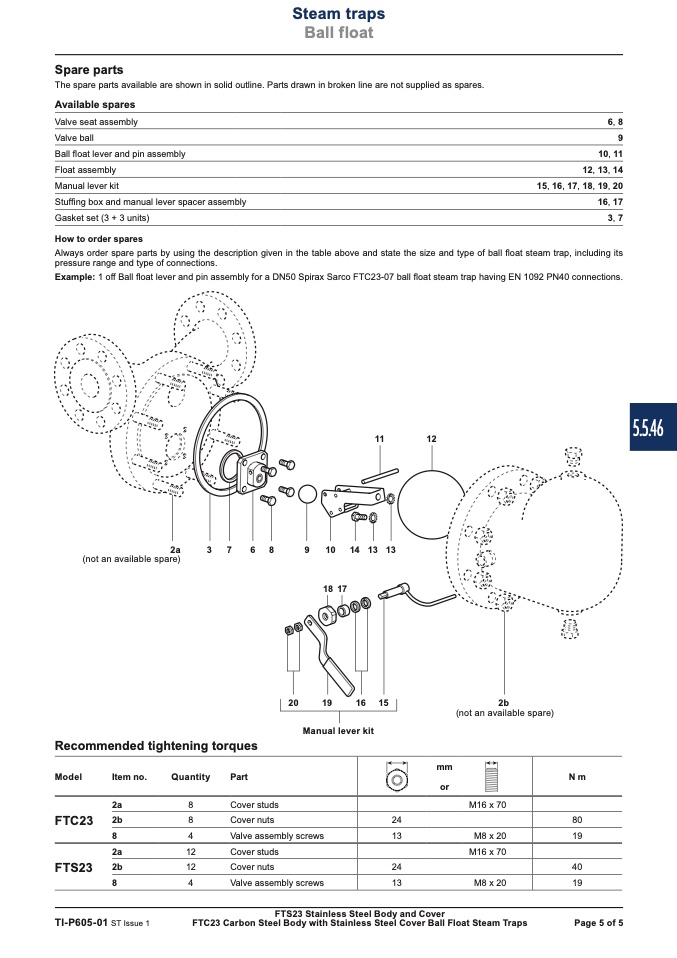

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Valve seat assembly

Valve ball

Ball float lever and pin assembly

Float assembly

Manual lever kit

Stuffing box and manual lever spacer assembly

Gasket set (3 + 3 units)

How to order spares

6, 8

9

10, 11

12, 13, 14

15, 16, 17, 18, 19, 20

16, 17

3, 7

Always order spare parts by using the description given in the table above and state the size and type of ball float steam trap, including its

pressure range and type of connections.

Example: 1 off Ball float lever and pin assembly for a DN50 Spirax Sarco FTC23-07 ball float steam trap having EN 1092 PN40 connections.

11

2a

3

7

6

8

9

1

0

141313

12

(not an available spare)

18 17

20

19

16 15

Manual lever kit

Valve assembly screws

Cover studs

Cover nuts

Valve assembly screws

2b

(not an available spare)

Recommended tightening torques

mm

or

M16 x 70

24

13

M8 x 20

M16 x 70

24

13

M8 x 20

Model

Item no.

Quantity

2a

8

FTC23 2b

8

8

4

2a

12

FTS23 2b

12

8

4

Part

Cover studs

Cover nuts

N m

80

19

40

19
