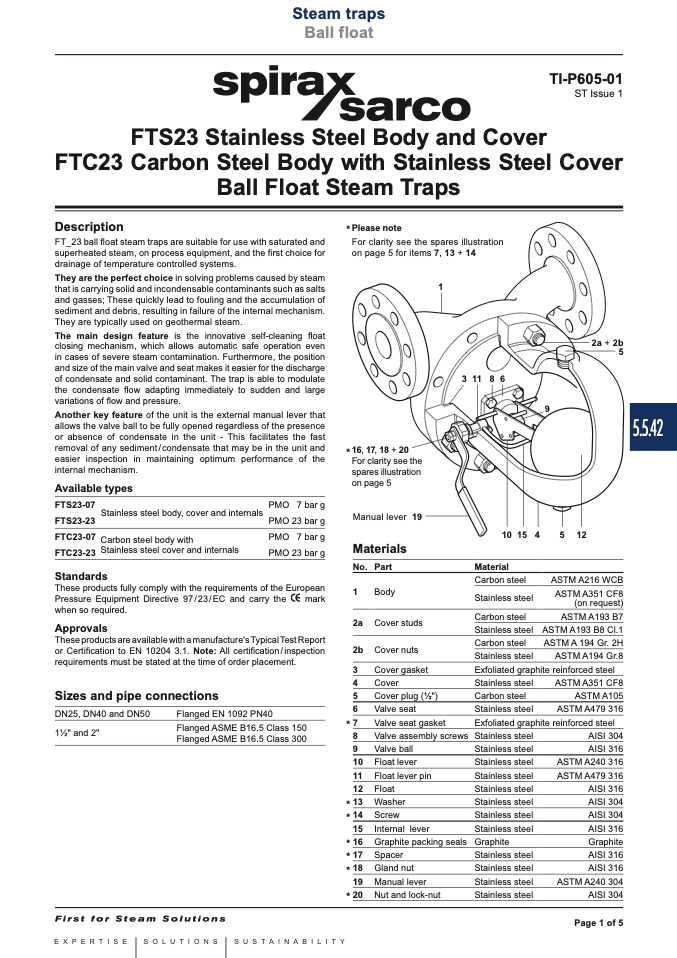

Steam traps
Ball float
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2014
TI-P605-01
ST Issue 1
FTS23 Stainless Steel Body and Cover
FTC23 Carbon Steel Body with Stainless Steel Cover
Ball Float Steam Traps
Description
FT_23 ball float steam traps are suitable for use with saturated and
superheated steam, on process equipment, and the first choice for
drainage of temperature controlled systems.
They are the perfect choice in solving problems caused by steam
that is carrying solid and incondensable contaminants such as salts
and gasses; These quickly lead to fouling and the accumulation of
sediment and debris, resulting in failure of the internal mechanism.
They are typically used on geothermal steam.
The main design feature is the innovative self-cleaning float
closing mechanism, which allows automatic safe operation even
in cases of severe steam contamination. Furthermore, the position
and size of the main valve and seat makes it easier for the discharge
of condensate and solid contaminant. The trap is able to modulate
the condensate flow adapting immediately to sudden and large
variations of flow and pressure.
Another key feature of the unit is the external manual lever that
allows the valve ball to be fully opened regardless of the presence
or absence of condensate in the unit - This facilitates the fast
removal of any sediment/condensate that may be in the unit and
easier inspection in maintaining optimum performance of the
internal mechanism.
Available types
FTS23-07
Stainless steel body, cover and internals
PMO 7 bar g
* Please note
For clarity see the spares illustration
on page 5 for items 7, 13 + 14
1
2a + 2b
5
3 11 8 6
FTS23-23
PMO 23 bar g
* 16, 17, 18 + 20
For clarity see the
spares illustration
on page 5
Manual lever 19
Materials
9
10154
5
12
FTC23-07 Carbon steel body with
FTC23-23 Stainless steel cover and internals
Standards
PMO 7 bar g
PMO 23 bar g
These products fully comply with the requirements of the European
Pressure Equipment Directive 97 / 23 / EC and carry the
mark
when so required.
Approvals
These products are available with a manufacture's Typical Test Report
or Certification to EN 10204 3.1. Note: All certi
fication/inspection
requirements must be stated at the time of order placement.
Sizes and pipe connections
No. Part
1 Body
2a Cover
2b Cover
studs
nuts
Material
Carbon steel
Stainless steel
Carbon steel
Stainless steel
Carbon steel
Stainless steel
ASTM A216 WCB
ASTM A351 CF8
(on request)
ASTM A193 B7
ASTM A193 B8 Cl.1
ASTM A 194 Gr. 2H
ASTM A194 Gr.8
3 Cover
4 Cover
5 Cover
6 Valve seat
Exfoliated graphite reinforced steel
gasket
plug (1⁄2")
Stainless steel
Carbon steel
Stainless steel
ASTM A351 CF8
ASTM A105
ASTM A479 316
DN25, DN40 and DN50
11⁄2" and 2"
Flanged EN 1092 PN40
Flanged ASME B16.5 Class 150
Flanged ASME B16.5 Class 300
* 7
8 Valve assembly screws
9 Valve ball
10 Float lever
11 Float lever pin
12 Float
Exfoliated graphite reinforced steel
Valve seat gasket
* 13
* 14
Washer
Screw
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Graphite
Stainless steel
Stainless steel
Stainless steel
Stainless steel
AISI 304
AISI 316
ASTM A240 316
ASTM A479 316
AISI 316
AISI 304
AISI 304
AISI 316
Graphite
AISI 316
AISI 316
ASTM A240 304
AISI 304
15 Internal lever
* 16
* 17
* 18
Graphite packing seals
Spacer
Gland nut
19 Manual lever
* 20
Nut and lock-nut
Page 1 of 5
5.5.42
