Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P145-20) supplied with the product.

Installation note:

The FTGS14HC must be installed with the direction of flow as

indicated on the body, and with the float arm in a horizontal plain

so that it rises and falls vertically, therefore the arrow on the

name-plate must point downwards.

Disposal

This product is recyclable. No ecological hazard is anticipated with

the disposal of this product providing due care is taken.

How to order

Example 1: 1 off Spirax Sarco 1" FTGS14HC-4.5 (L-R) ball float

steam trap with screwed BSP connections and integral air vent.

Cover to be supplied with " tappings ready for both drain and

balance pipe connections.

Note: If the optional manually adjustable needle valve is required

you would need to write your order as follows:

Example 2: 1 off Spirax Sarco 1" FTGS14HC-4.5C (L-R) ball float

steam trap with screwed BSP connections and integral air vent

complete with manually adjustable needle valve supplied fitted.

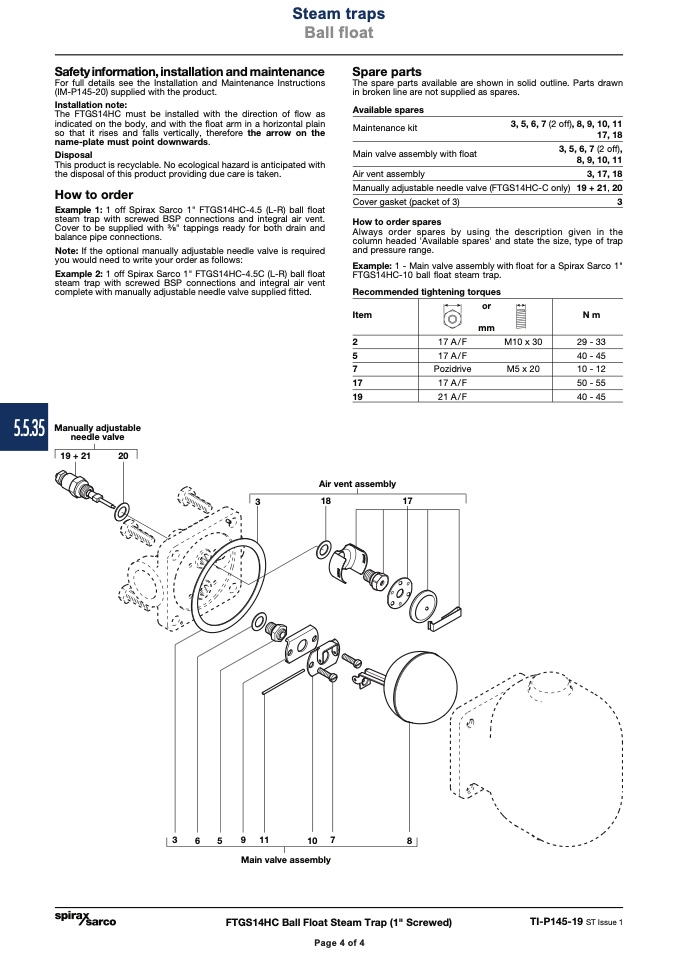

Spare parts

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

5.5.35

Manually adjustable

needle valve

19 + 21

20

Steam traps

Ball float

Page 4 of 4

Item

2

5

7

17

19

Air vent assembly

3

18

17

or

mm

N m

29 - 33

40 - 45

10 - 12

50 - 55

40 - 45

3

6

5

9

1

1

1

0

7

8

Main valve assembly

FTGS14HC Ball Float Steam Trap (1" Screwed)

TI-P145-19 ST Issue 1

Page 4 of 4

Available spares

Maintenance kit

Main valve assembly with float

3, 5, 6, 7 (2 off), 8, 9, 10, 11

17, 18

3, 5, 6, 7 (2 off),

8, 9, 10, 11

Air vent assembly

Manually adjustable needle valve (FTGS14HC-C only)

Cover gasket (packet of 3)

How to order spares

3, 17, 18

19 + 21, 20

3

Always order spares by using the description given in the

column headed 'Available spares' and state the size, type of trap

and pressure range.

Example: 1 - Main valve assembly with float for a Spirax Sarco 1"

FTGS14HC-10 ball float steam trap.

Recommended tightening torques

17 A/F

17 A/F

Pozidrive

17 A/F

21 A/F

M10 x 30

M5 x 20
