Withdrawal distance
E
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions
(IM-F01-30) supplied with the product.
Installation note:
The IFT14 must be installed with the direction of flow as indicated
on the body, and with the float arm in a horizontal plain so that it
rises and falls vertically. It is recommended that a strainer, with a
screen having 0.8 mm perforations, is installed upstream of the unit
to ensure adequate removal of dirt from the steam system.
Disposal
This product is recyclable. No ecological hazard is anticipated
with the disposal of this product providing due care is taken.
How to order
Example: 1 off Spirax Sarco 1⁄2" IFT14-4.5 ball float steam trap
with screwed BSP connections having either an integral sensor to
identify waterlogging and steam wastage (WLSI sensor) or for
steam leakage only (SSI sensor). Sensors to be compatible with
Spiratec indicators, automatic monitors and test points:
- R1 (single trap) remote test point,
- R12 (12 trap) remote test point,
- Type 30 hand held indicator,
- R16C (16 traps) automatic steam trap monitor with PNP/NPN
output where appropriate.
The spare parts available are shown in solid outline. Parts shown
in broken line are not supplied as spares.
2
(not an available spare)
Recommended tightening torques
6
510
711
8
Main valve assembly
N m
45 - 55
50 - 55
2.5 - 3.0
50 - 55
50 - 55
3
25
24
Item
2
5
7
17
24
or
mm
17 A/F
17 A/F
Pozidrive
17 A/F
24 A/F
M10 x 30
M4 x 6
Steam traps
Ball float

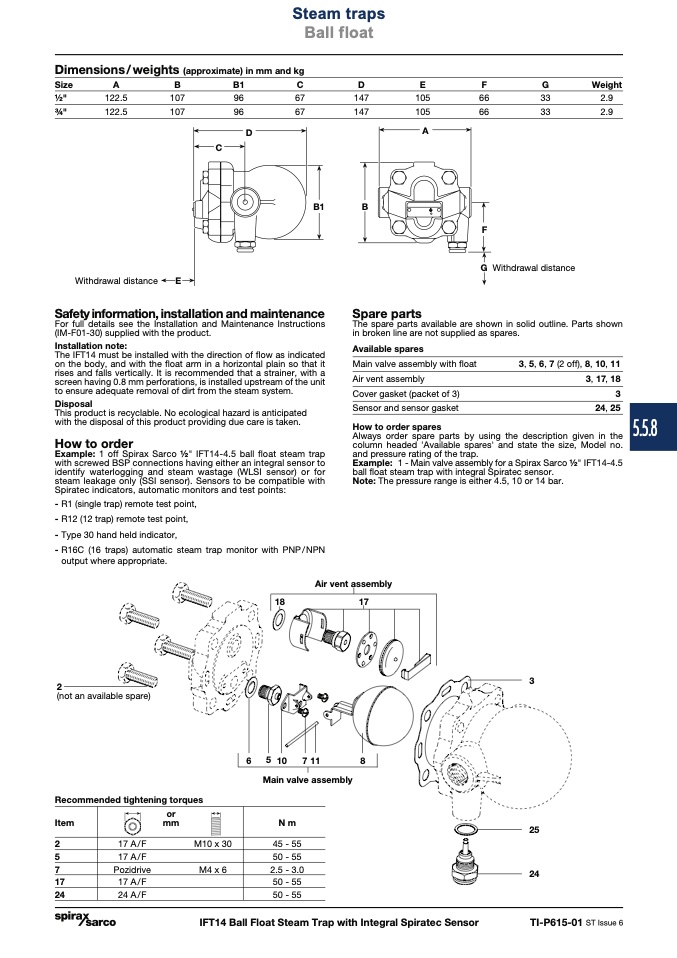

Page 3 of 3
Dimensions/weights (approximate) in mm and kg
Size
A
B
B1
C
D
E
F
G
Weight
1⁄2"
122.5
107
96
67
147
105
66
33
2.9
3⁄4"
122.5
107
96
67
147
105
66
33
2.9
D
C
A
B1
B
Spare parts
Air vent assembly
18
17
IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
TI-P615-01 ST Issue 6
Available spares
Main valve assembly with float
Air vent assembly
Cover gasket (packet of 3)
Sensor and sensor gasket
How to order spares
3, 5, 6, 7 (2 off), 8, 10, 11
3, 17, 18
3
24, 25
F
G Withdrawal distance
Always order spare parts by using the description given in the
column headed 'Available spares' and state the size, Model no.
and pressure rating of the trap.
Example: 1 - Main valve assembly for a Spirax Sarco 1⁄2" IFT14-4.5
ball float steam trap with integral Spiratec sensor.
Note: The pressure range is either 4.5, 10 or 14 bar.
5.5.8
