Steam traps

Bimetallic

Dimensions / weights (approximate) in mm and kg

Spare parts

The spare parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

Size

A

B

1⁄2"

215

137

C

Capacities

C

Weight

32

1.2

B

Available spares

Element set

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of trap.

Example: 1 - Element set for a 1⁄2" Spirax Sarco No.8 fixed temperature

liquid expansion steam trap.

(5)

2

Adjustment

lock-nut

7

/

8

" Whit.

2, 8, 10, 11

How to order spares

A

The capacity graph shown is based on a trap with the adjustment

3 turns open and handling condensate at 80°C.

������

������

������

������

������

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P018-02) supplied with the product.

The trap should be installed with the inlet below the equipment being

drained. The outlet should always be above the trap.

Adjustment

The position of the valve head relative to the seat and, therefore, the

operating temperature, can be altered by turning the adjustment

which serves one end of the element.

How to order

Example: 1 off 1⁄2" BSP Spirax Sarco No.8 fixed temperature liquid

expansion steam trap.

Round-head

screw

Adjustment

nut

��

��

��

�� ��

����

����

Differential pressure bar (x 100 = kPa)

8

10

11

Recommended tightening torques

Item

Nm

or

mm

1

15

/

32

A/F

1⁄2" UNF

5

11

80 - 85

30 - 35

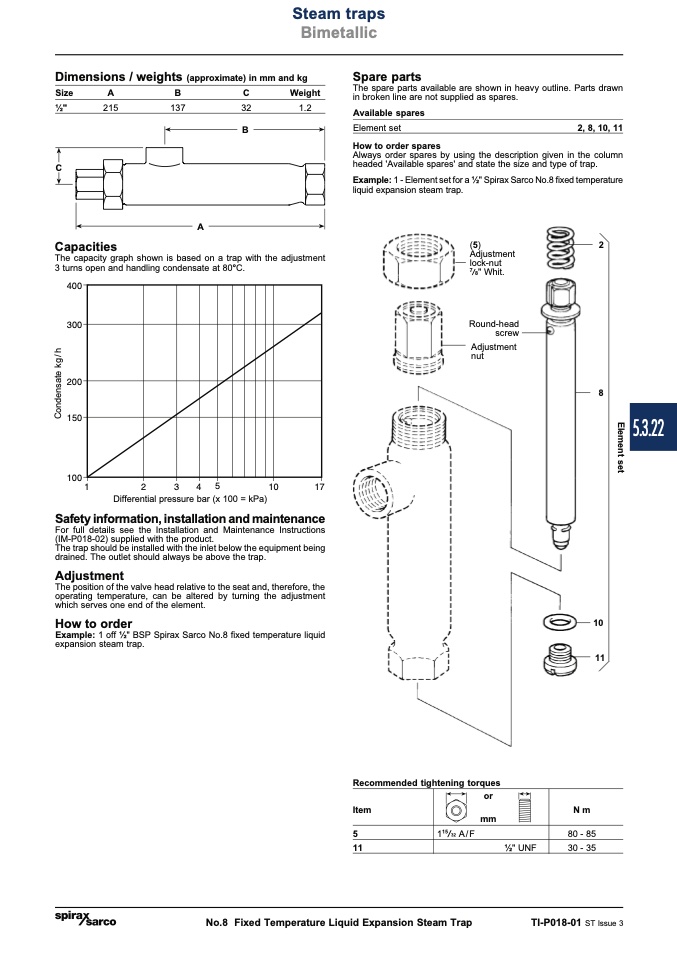

No.8 Fixed Temperature Liquid Expansion Steam Trap

TI-P018-01 ST Issue 3

5.3.22

C

o

n

d

e

n

s

a

t

e

k

g

/

h

E

l

e

m

e

n

t

s

e

t
