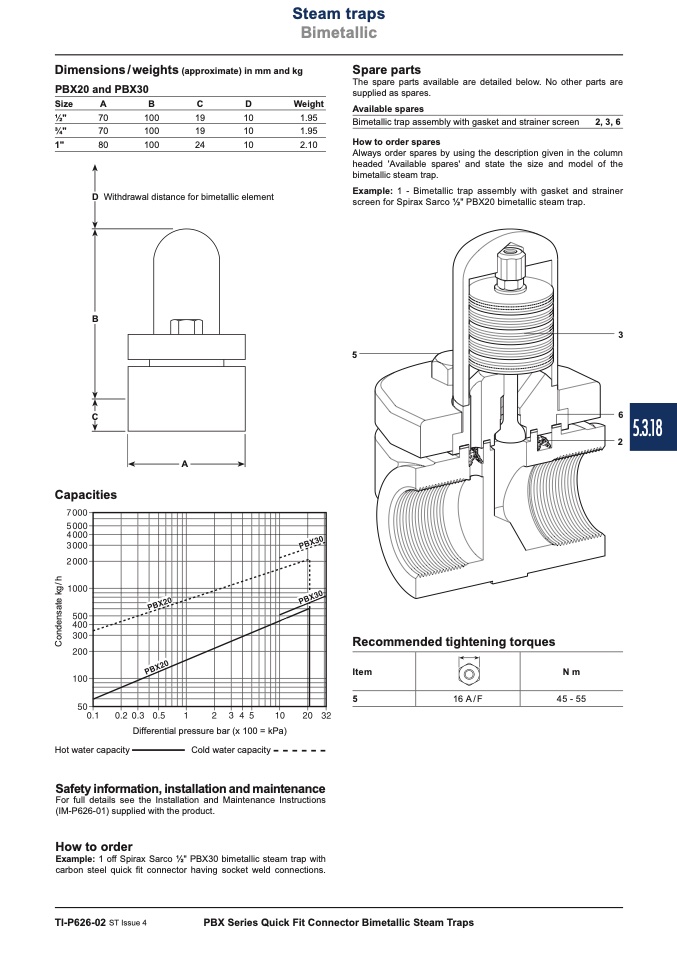

Dimensions / weights (approximate) in mm and kg

PBX20 and PBX30

Size

A

B

C

D

Weight

1⁄2"

70

100

19

10

1.95

3⁄4"

70

100

19

10

1.95

1"

80

100

24

10

2.10

Spare parts

The spare parts available are detailed below. No other parts are

supplied as spares.

B

C

Capacities

5

3

2

6

5.3.18

D Withdrawal distance for bimetallic element

Always order spares by using the description given in the column

headed 'Available spares' and state the size and model of the

bimetallic steam trap.

Example: 1 - Bimetallic trap assembly with gasket and strainer

screen for Spirax Sarco 1⁄2" PBX20 bimetallic steam trap.

Hot water capacity

Differential pressure bar (x 100 = kPa)

Cold water capacity

A

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P626-01) supplied with the product.

How to order

Example: 1 off Spirax Sarco 1⁄2" PBX30 bimetallic steam trap with

carbon steel quick fit connector having socket weld connections.

TI-P626-02 ST Issue 4

PBX Series Quick Fit Connector Bimetallic Steam Traps

Steam traps

Bimetallic

Available spares

Bimetallic trap assembly with gasket and strainer screen

How to order spares

2, 3, 6

Recommended tightening torques

Item

Nm

C

o

n

d

e

n

s

a

t

e

k

g

/

h

5

16 A/F

45 - 55
