Pressure bar g

The product must not be used in this region.

The product should not be used in this region or beyond its

operating range as damage to the internals may occur.

Materials

No. Part

Material

Carbon steel

A -B

A -C

A -D

A -E

F-G Flanged JIS/KS 10K.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Corrosion resistant bimetal (Rau Type H46)

and stainless steel

Screwed, socket weld, butt weld and flanged ANSI 300.

Flanged EN 1092 PN40.

Flanged JIS/KS 20K.

Flanged ANSI 150.

Stainless steel

Stainless steel reinforced exfoliated graphite

0°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 75 bar g

PN40

50 bar g @ 50°C

400°C @ 35 bar g

-60°C

32 bar g

240°C @ 32 bar g

Carbon steel

Stainless steel

Steel

Stainless steel

DIN 17243 C22.8

(W/S 1.0460) ASTM A105N

(M10 x 30)

A2-70

BS 970 416 S37

BS 1449 304 S16

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Steam traps

Bimetallic

ISMC32

Carbon Steel

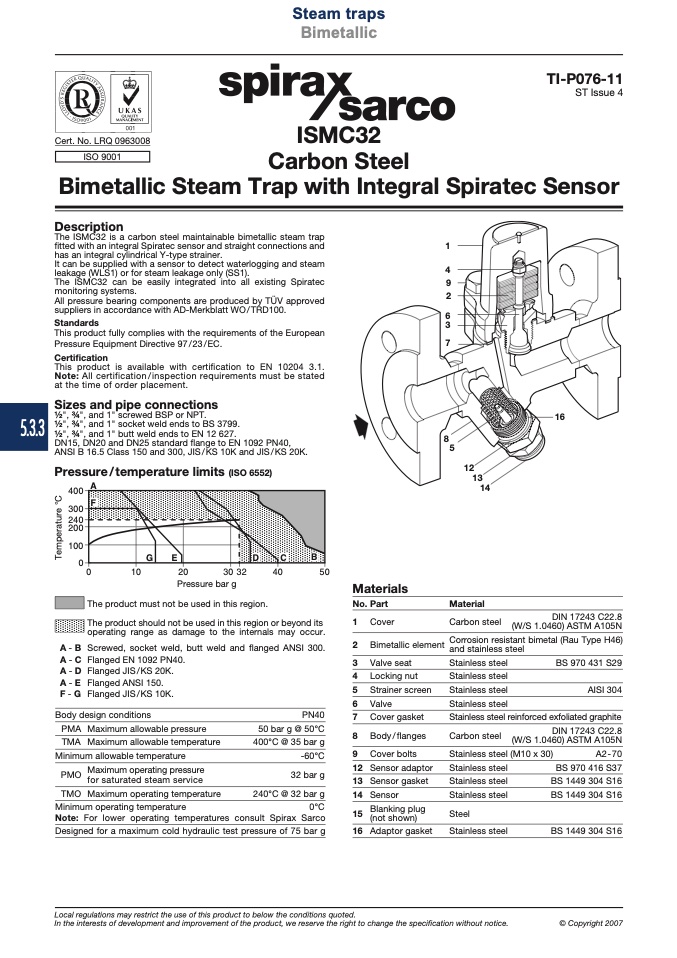

Bimetallic Steam Trap with Integral Spiratec Sensor

Cert. No. LRQ 0963008

ISO 9001

Description

The ISMC32 is a carbon steel maintainable bimetallic steam trap

fitted with an integral Spiratec sensor and straight connections and

has an integral cylindrical Y-type strainer.

It can be supplied with a sensor to detect waterlogging and steam

leakage (WLS1) or for steam leakage only (SS1).

The ISMC32 can be easily integrated into all existing Spiratec

monitoring systems.

All pressure bearing components are produced by TÜV approved

suppliers in accordance with AD-Merkblatt WO/TRD100.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with certi

fication to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

5.3.3

1⁄2", 3⁄4", and 1" screwed BSP or NPT.

1⁄2", 3⁄4", and 1" socket weld ends to BS 3799.

1⁄2", 3⁄4", and 1" butt weld ends to EN 12 627.

DN15, DN20 and DN25 standard flange to EN 1092 PN40,

ANSI B 16.5 Class 150 and 300, JIS/KS 10K and JIS/KS 20K.

Pressure/temperature limits (ISO 6552)

��

�

��

�

��

1 Cover

2 Bimetallic element

3 Valve seat

4 Locking nut

5 Strainer screen

6 Valve

7 Cover gasket

8 Body / flanges

9 Cover bolts

12 Sensor adaptor

13 Sensor gasket

14 Sensor

Blanking plug

(not shown)

16 Adaptor gasket

DIN 17243 C22.8

(W/S 1.0460) ASTM A105N

TI-P076-11

ST Issue 4

BS 970 431 S29

AISI 304
