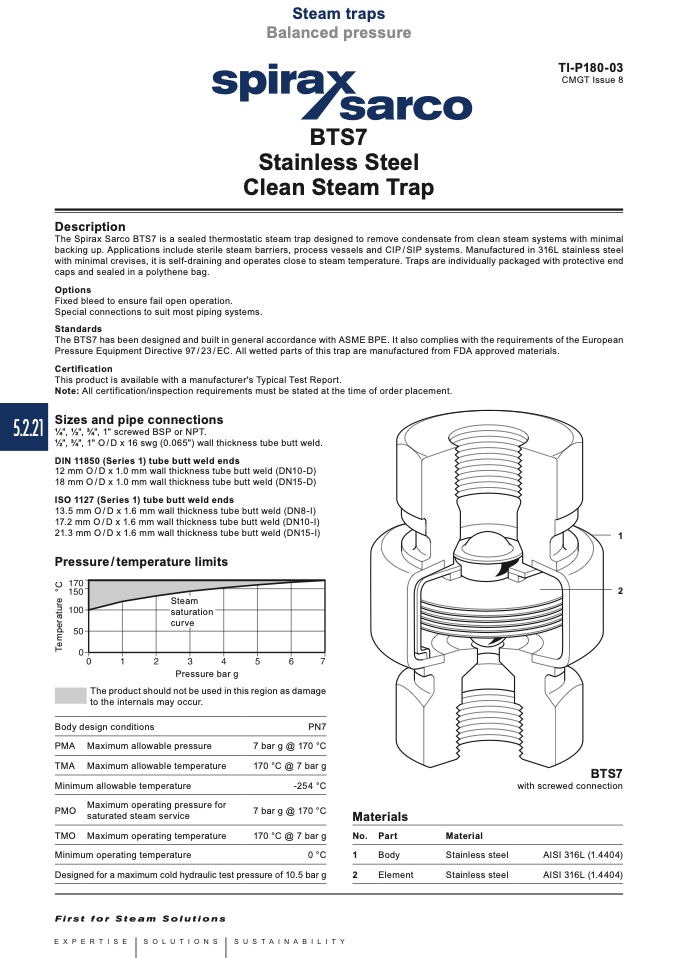

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Balanced pressure

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

5.2.21

Steam

saturation

curve

TI-P180-03

CMGT Issue 8

BTS7

Stainless Steel

Clean Steam Trap

Description

The Spirax Sarco BTS7 is a sealed thermostatic steam trap designed to remove condensate from clean steam systems with minimal

backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel

with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end

caps and sealed in a polythene bag.

Options

Fixed bleed to ensure fail open operation.

Special connections to suit most piping systems.

Standards

The BTS7 has been designed and built in general accordance with ASME BPE. It also complies with the requirements of the European

Pressure Equipment Directive 97 / 23 / EC. All wetted parts of this trap are manufactured from FDA approved materials.

Certification

This product is available with a manufacturer's Typical Test Report.

Note: All certification/inspection requirements must be stated at the time of order placement.

Sizes and pipe connections

1⁄4", 1⁄2", 3⁄4", 1" screwed BSP or NPT.

1⁄2", 3⁄4", 1" O / D x 16 swg (0.065") wall thickness tube butt weld.

DIN 11850 (Series 1) tube butt weld ends

12 mm O/D x 1.0 mm wall thickness tube butt weld (DN10-D)

18 mm O/D x 1.0 mm wall thickness tube butt weld (DN15-D)

ISO 1127 (Series 1) tube butt weld ends

13.5 mm O/D x 1.6 mm wall thickness tube butt weld (DN8-I)

17.2 mm O/D x 1.6 mm wall thickness tube butt weld (DN10-I)

21.3 mm O/D x 1.6 mm wall thickness tube butt weld (DN15-I)

Pressure / temperature limits

Pressure bar g

The product should not be used in this region as damage

to the internals may occur.

1

2

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure for

saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN7

7 bar g @ 170 °C

170 °C @ 7 bar g

-254 °C

7 bar g @ 170 °C

170 °C @ 7 bar g

0 °C

Materials

No. Part

1

Body

2

Element

Material

Stainless steel

Stainless steel

BTS7

with screwed connection

AISI 316L (1.4404)

AISI 316L (1.4404)

Designed for a maximum cold hydraulic test pressure of 10.5 bar g

T

e

m

p

e

r

a

t

u

r

e

°

C
