Steam traps
Balanced pressure

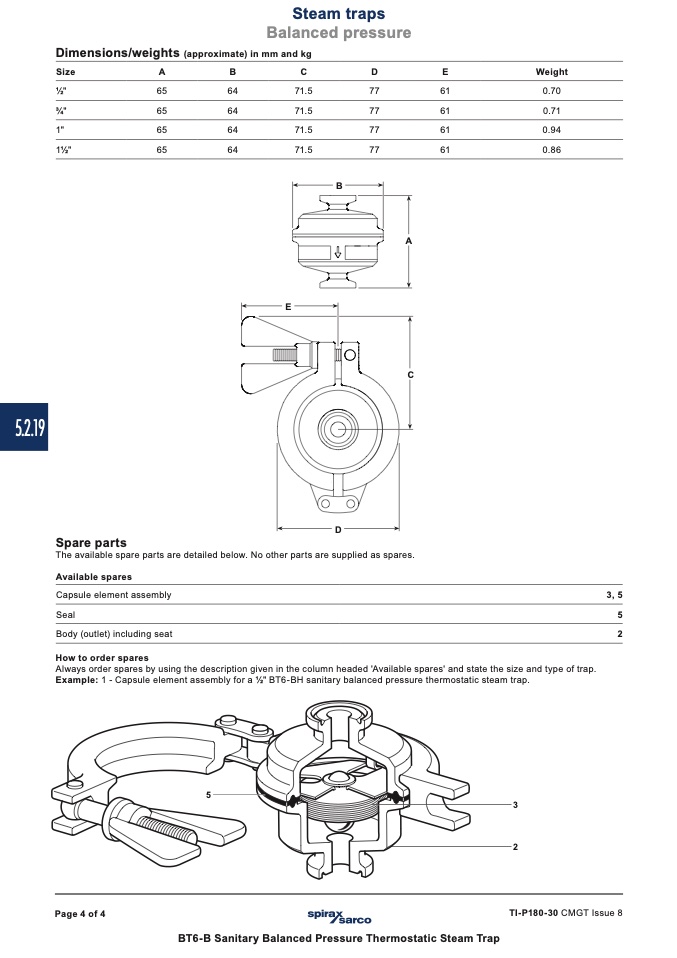

Dimensions/weights (approximate) in mm and kg
Size
A
B
C
D
E
Weight
1⁄2"
65
64
71.5
77
3⁄4"
65
64
71.5
77
1"
65
64
71.5
77
11⁄2"
65
64
71.5
77
61
0.70
61
0.71
61
0.94
61
0.86
5.2.19
Spare parts
D
The available spare parts are detailed below. No other parts are supplied as spares.
Available spares
Capsule element assembly
Seal
Body (outlet) including seat
How to order spares
3, 5
5
2
E
A
C
Always order spares by using the description given in the column headed 'Available spares' and state the size and type of trap.
Example: 1 - Capsule element assembly for a 1⁄2" BT6-BH sanitary balanced pressure thermostatic steam trap.
Page 4 of 4
TI-P180-30 CMGT Issue 8
5
3
2
B
BT6-B Sanitary Balanced Pressure Thermostatic Steam Trap
